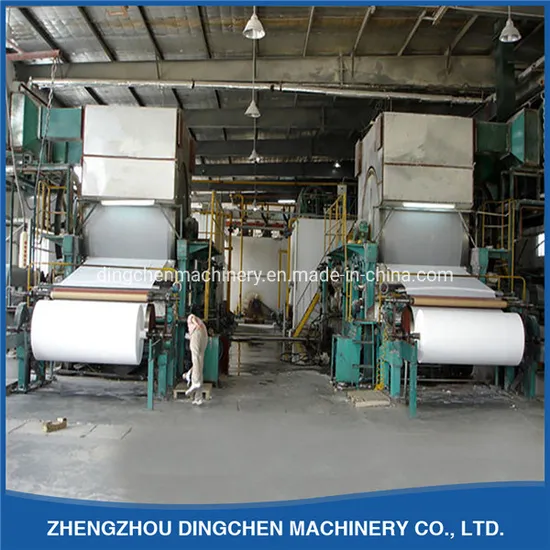

Competitive Price 1880mm Toilet Tissue Paper Production Line

Product Description

competitive price 1880mm toilet tissue paper production line
Technical paramete
1. Raw material: recycled paper(waste books paper;old office paper;white paper off-cut from printing factory and little waste newspaper,magazine) ;
2.Output paper weight: 15-30g/m2
3.Capacity: 4-5 tons per day
4.Wire width: 2350mm
5.Designing speed: 180m/min
6.Drive way: Alternating current conversion speed, sectional drive.
7.Output paper: toilet paper ,serviette paper
The main structure with spec for paper making section
1.Ф1250mm×2350mm×2800mmCylinder mold
2.Ф450mm×2350mm×2800mm Couch roll
3.Cylinder mold box
4.Ф2000mm×2350mm×2800mm dryer can
5.Ф550mm×2350mm×2800mm Touch roll
6.pneumatic pressure device
7.Pneumatic creping scraper
8.double-layer dryer hood
9.Φ600 Axial-flow ventilator
10.Ф600mm×2350mm×2800mm winding cylinder
11.reeler roll
12.15 type roots vacuum pump
13.Vacuum suction box
14.Air compressor
15.Pressure air tank
16.Ф600mm×2350mm×2800mm winding cylinder
17.reeler roll
18.15 type roots vacuum pump
19.Vacuum suction box
20.Air compressor
21.Pressure air tank
22.High pressure water pump
23.Movable water spray pipe Device
24.Frequency conversion controlling cabinet
25.Working table
26.2 T Boiler

NO.	Item	Function
1	Ф1250mm×2350mm×2800mmCylinder mold	Extract the pulp fiber to the paper making felt by rotating
2	Ф450mm×2350mm×2800mm Couch roll	Installed above the cylinder mold , through the pressure, to make pulp fiber adhere to the surface of the felt
3	Cylinder mold box	There is no pulp vestige no spilling.This make paper even and have strength of landscape orientation and portrait.
4	Ф2000mm×2350mm×2800mm dryer can	Get into hot steam,to drying the wet paper sheet through the touch between paper and hot dryer.
5	Ф550mm×2350mm×2800mm Touch roll	Under the dryer can, give pressure to the dryer can ,to achieve the tight touch between paper and dryer.
6	pneumatic pressure device	Give pressure to the touch roll,to make more tight touch between touch roll and dryer.
7	Pneumatic creping scraper	Equipped with 2 sets creping scraper in the machine, the pneumatic loaded one is working ,the other one is waiting.

8	double-layer dryer hood	To cover the dryers and collect the hot & moist air which is diffused by dryers
9	Φ600 Axial-flow ventilator	To ventilate and pull out the hot & moist air in the exhaust hood
10	Ф600mm×2350mm×2800mm winding cylinder	To reel the jumbo roll paper after drying by the dryer can
11	reeler roll	made from 20#seamless steel tube
12	15 type roots vacuum pump	To provide the vacuum force for the suction box
13	Vacuum suction box	To absorb the water in the wet paper
14	Air compressor	To provide the compressed air for the pneumatic device
15	Pressure air tank	To store the compressed air

16	High pressure water pump	Provide high pressure water for the movable water spray pipe to wash the felt
17	Movable water spray pipe Device	To wash and clean the felt through spraying high pressure water which can move left and right.

18	Frequency conversion controlling cabinet	To control the running speed of the machine
25	Working table	To operate and maintain the machine & carry paper stand on them
19	2 T Boiler	To provide the hot steam for the dryers

The equipments for pulp making section
1.high concentration hydra-pulper
To break the waste paper into pulp and drop down the impurity and ink
2.High frequency vibrating screen
High frequency vibrating screen
3.Φ700mm impeller
To stir the pulp and make sure the pulp and water mixed well
4. Bleacher
To whiten the pulp through bleaching
5.-150 pulp pump
To provide the pulp for the needed machine
6.-200white water pump
Recycle the white water during production
7.Φ380mm double disc pulp refiner (with refiner plate 4 pieces)
To make the pulp much finer and smoother
8.606 sand remover
To remove the sand and impurity in the water and pulp
9.0.3 m2 pressure screen
To make the pulp more fine
10.Electric operation cabinet
To control the pulp making machines running or stop
Company Information
Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers' consistent affirmations.have won customers' consistent affirmations.We have a large scale of products regarding paper machinery, including:A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressurescreen, screen basket, pulp pump etc.)B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier papermachine, head box, cylinder mould, dryer cylinder, roller etc.)C.Paper making finished devices (Paper calender, pope reel,size press,paper rewinder etc.)Meet customers' requirements and exceed customers' expects.We wish to found long-termcooperation with your companyTechnical Advantage1.Experienced producing team2.Advanced technological strengthProduct Advantage1.Through the international authentication2.The same material the most preferential price3.A lot of varieties for the customer to chooseService Advantage1.Technical consultation2.Project evaluation3.Detailed design of factory4.Installing and testing the whole production line5.Training engineers and workers6.Supplying spare parts for long timeThe business process1.send your requirements:raw material,capacity,paper grammage2.we make the solution to you3.come visit and negotiate4.sign contract5.first payment6.production7.pay spare money8.delivery9.installation ,training,test run10.production consultlation
