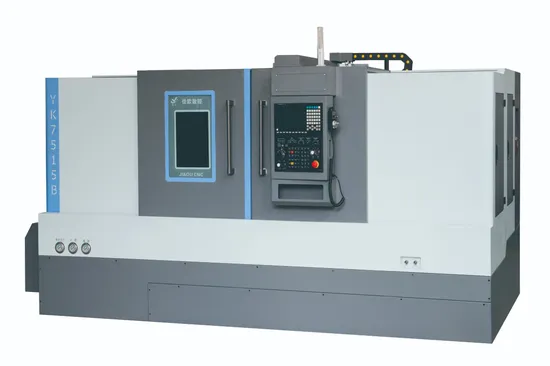

Long Machining Length CNC Lathe Machine with Static Tool Turret

Product Description

Product Description

1. Extended Machining Length for Versatile Applications
With a maximum machining length of 1.5 meters, this CNC lathe is perfect for handling longer workpieces, meeting the requirements of various industries such as automotive, aerospace, and energy.
2. Optional Steady Rest for Enhanced Support
The machine can be equipped with an optional steady rest, providing additional support during machining of long or slender workpieces. This ensures improved stability and precision, minimizing deflection.
3. Precision Control with Optional Linear Ruler
An optional linear ruler enhances machining accuracy by enabling precise measurement and control of the tool's position. This feature ensures consistent performance for high-precision operations.
4. 30° Slant Bed Design for Stability and Efficiency
The 30° slant bed structure improves rigidity and allows for efficient chip evacuation, reducing downtime and improving productivity. This design also enhances the operator's accessibility for tool changes and setup adjustments.
5. Hydraulic Tailstock for Long and Heavy Workpieces
The hydraulic tailstock offers superior support for machining long or heavy parts, reducing deflection and ensuring consistent results. This feature is crucial for producing high-quality components in large-scale production environments.
6. Premium Components for Unmatched Reliability
Built with key components from Taiwan, Japan, and Germany, this lathe guarantees durability and high performance. These precision parts ensure consistent quality, minimizing maintenance and downtime.
7. Cost-Effective and Customizable
With the ability to add optional features like the steady rest and linear ruler, the machine can be tailored to meet specific production needs, offering both flexibility and cost-effectiveness.
Product Parameters

Machining Capacity	Swing over bed	mm	Φ600
	Swing over carriage	mm	Φ340
	Max machining length	mm	1500
	Max turning dia	mm	Φ500
	Max bar material size	mm	Φ72
	Distance between centers	mm	1500
	Interference diameter	mm	Φ238
Spindle	Spindle nose	-	A2-8
	Spindle bore	mm	Φ82
	Taper of spindle inner hole		90(1:20)
	Spindle motor power	kw	15-22
	Chuck size	inch	10
	Spindle speed	rpm	2500
Axes specs	Axes travel	mm	X300 Z1550
	Axes fast moving	m/min	X18 Z15
	Repeatable positioning accuracy	mm	X0.003 Z0.005
Tool type	Turret	-	12-125-500
	Tool holder size	mm	32*32/Φ50
Tail-stock	Tail-stock form	-	/
	Tailstock travel	mm	1400
	Quill inner taper	MT	4#
Other specs	Programming		ISO standard
	Cooling motor	w	750
Measurements	Dimension	mm	around 4450*2050*2100
	Weight	kg	around 7200

Certifications
We have our own independent R&D and design team and have applied for a number of technical patents. From high-precision spindles to bed bodies to external sheet metal, the R&D and design department designs and the production department implements, giving us full control over design and production autonomy, making it more flexible and changeable.
Company Profile
Yuhuan Jiaou CNC Machine Tool Manufacturing Co., Ltd. is located in Bingang Industrial City, Shamen Town, Yuhuan City. Our company is a technology-based enterprise, specializing in the R&D, production and sales of CNC machine tools, and has a professional technical and sales service team who has long been engaged in the design and development of CNC machine tools, constantly innovating and advancing with the times. The precision CNC lathes designed for the metal working, including gang type, turret type, mill-turn compound type, can easily handle complex, precise, small-batch, and multi-variety part processing problems, and provide customers with targeted and efficient metal cutting solutions, creating more possibilities for their intelligent and automated production processing.
Equipped with a complete quality testing system and sophisticated testing instruments, our company has passed the ISO9001 system certification to ensure that we provide customers with high-quality equipment and fast after-sales service.
We adhere to the business philosophy of "Detail first, customer first, and creating maximum value for customers", and always implements the quality guideline of "Quality first, continuous improvement". We provide full-service from pre-sales to after-sales, from products to designs, and wholeheartedly commit to providing customers with thoughtful, advanced, high-quality, cost-effective equipment.
Creating the greatest value for you is of most significance for Jiaou's efforts!
Yuhuan JIAOU CNC has multiple production workshops, from bed component blank processing, optical and mechanical assembly, installation and debugging, sheet metal laser cutting and bending, external protective sheet metal spraying, etc., all of which are independently produced and processed.
Packaging & Shipping
FAQ
Q: What's the availability of spare parts?
A: We maintain a comprehensive stock of spare parts with quick delivery options.
Q: What CNC control system does it use?
A: Our machines can be equipped with different brands of CNC control systems, such as FANUC, SIEMENS, SYNTEC, KND, GSK, etc.
Q: Do you provide operator training?
A: Yes. We welcome your engineers or operators to have operator training at our site. And we are able to provide online technical support as well.
Q: What's the lead time for delivery?
A: Faster delievery time. 10-20 days for our standard regular machines, the delivery time of customized machine need to be negotiated.
Q: Is customization available?
A: Yes. We have rich experience in custom processing and can provide flexible customization services from bed to processing parameters to appearance.

---
