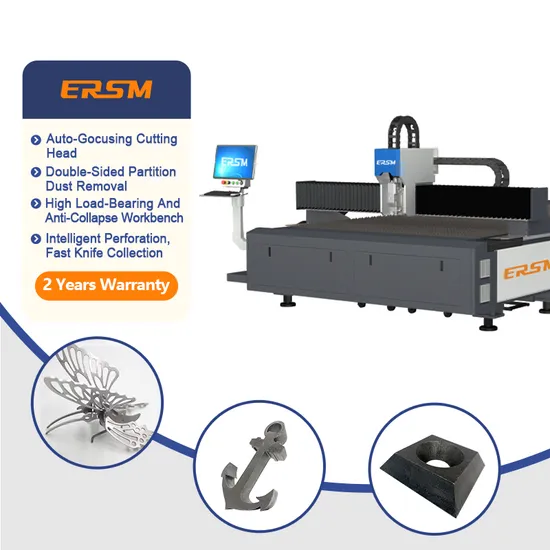

Intelligent Cutting Control X/Y Axis Re-Postioning Accuracy 0.03mm Metal Laser Cutting Machine

Product Description

Product Description
Product Superiority:
(1) Integral welded lathe bed
(2)Self-lubricating system
(3)Full surround sheet metal cutting protection
(4)High-strengthaluminum alloybeam
Product Parameters

	S-FLC-3015	S-FLC-6015
Cutting Area	3000mm×1500 mm	6000mm×1500 mm
Z-Axis Travel	100mm	100mm
X/Y Axis Postioning Accuracy	±0.05mm/m	±0.05mm/m
X/Y Axis Re-postioning Accuracy	±0.03mm	±0.03mm
Max. Linkage Speed	100m/min	100m/min
Max. Linkage Acceleration	0.8 G	0.8 G
Overall capacity / Current	43.9kw~56.9kw /87.8A~114.8A	43.9kw~56.9kw /87.8A~114.8A
Max. Loading Weight	1000kg	2100kg
Machine Overall Dimensions	4600*2240* 1780 mm	7900*2240*1780 mm
Weight of the whole machine	2360kg	4200Kg
Voltage	Based on the order	Based on the order
Selectable power segment	3KW/6KW	3KW/6KW

FAQ
1. Who are we?
A:We are based in Jiangsu, China, start from 2011,sell to Southeast Asia(20.00%),Eastern Europe(20.00%), WesternEurope(10.00%), North America(10.00%), Northern Europe(5.00%), Central America(5.00%),
SouthAmerica(5.00%), Eastern Asia(5.00%),South Asia(5.00%),Oceania(5.00%),Southern Europe(5.00%), Africa(3.00%),MidEast(2.00%). There are total about 11-50 people in our office.
2.What is the function of this machine?
A:(1) Self-adaptive combined support foot:Double spherical gasket design, reduce the impact and vibration of operation, and make high-speed operation more stable. (2)Auto-focusing cutting head:Adapt to different materials and thicknesses, the focal length is automatically adjusted to the best cutting distance, and the efficiency is improved. (3)Automatic lubrication system:Full-automatic centralized lubrication control, low oil pressure alarm, oil-free shutdown, ensuring operation accuracy and stability. (4)Double-sided partition dust removal:Double-sided partition dust removal air duct, stable air volume, less cutting dust and excellent effect.
3.What advantages does this machine have in terms of numerical control system?
A:Plate surface height tracking control (follow-up function), retreat function, breakpoint return function, edge finding function, seam cutting compensation function, frog leaping function, common edge cutting, automatic typesetting function of introducing various parts, automatic optimization of cutting path, and support for marking and small hole marking.
4. What are the materials it can cut?
A: High carbon steel, low carbon steel, stainless steel, aluminum alloy, brass, pickling plate, galvanized plate, silicon steel plate, electrolytic plate, titanium alloy, manganese alloy, nickel plate and other metal materials
5. How do you guarantee the environmental pollution of this machine?
A: We have Double-sided partition dust removal air duct, stable air volume, less cutting dust and excellent effect.

---
