High-Sensitivity Capacitive Label Sensor for Packaging Machines, with NPN+PNP Output

Product Description

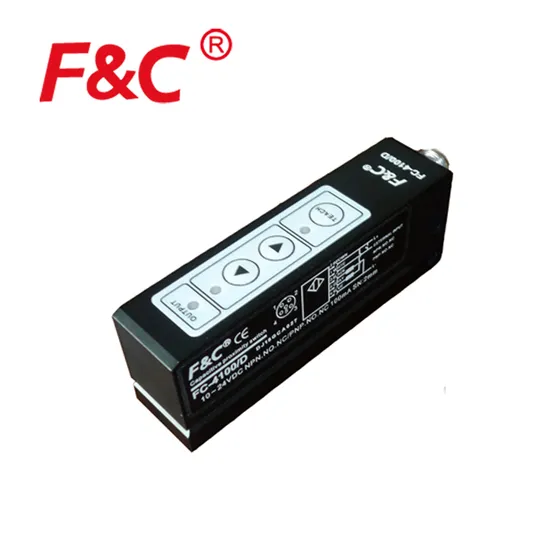

FC-4100 NPN PNP Capacitive Label Sensor Clear Transparent Label Detection
F&C Sensing Technology is a professional manufacturer engaging in research,development,production,marketing and service of fiber optic sensor, optic fibers, proximity sensor, photoelectric sensors, Light curtain, Label sensors, magnetic switch etc.
Label sensors are mainly used for the semi-auto Label machine and auto Label machine for label counting.
FC-41000 is a capacitive label sensor, so it can well detect the clear/transparent labels on the transparent back , also suitable for common labels detection.

FC-4100 NPN PNP Capacitive label sensor detect clear label transparent label
Model	FC-4100/D
Output type	NPN PNP NO NC
Detection distance	0.7mm
Accuracy & repeat	0.2mm
Operating voltage	DC12-24V±10%
Current consumption	≤25mA
Load current	00mA Max at DC 24V
Protection circuit	Reverse polarity protection and short circuit protection
Response time	0.1ms
Frequency	5Khz
Standard & Sensitivity	Key smart regulation
Indicator	red: Balance benshmark and sensitivity level; Green: Signal output
Ambient temperature	0-60 degree
Connector	M12 connector 5pin
Meterial	Aluminium metal sheet
Wiring method	φ4mm×2M/5-wires

For Common Label detection, you can choose our Fork Optical label sensors.

Model	FC-2100	FC-2100P
Output type	NPN NO.NC	PNP NO.NC
Detection distance	2mm
Light source	940nm infrared modulated light
Operating voltage	DC12-24V±10%
Protection circuit	Reverse polarity protection and short circuit protection
Response time	<500us
Leakage current	<0.01mA no-load
Operating temperature	-10ºC-+50ºC(without icing or condensation)
Storage temperarure	-20ºC~+60ºC(No freezing )
Ambient humidity	35%-85% RH
Protection degree	IP66
Meterial	Aluminium metal sheet
Wiring method	φ4mm×2M/4-wires or φ4mm×2M/M8 4-wires

If you need more details, please contact with us. we can share picture and video for your reference.

---
