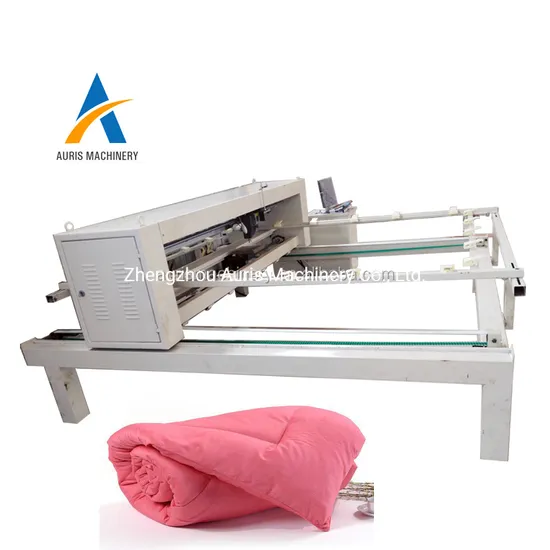

Industrial Continuous Cotton Quilt Mattress Bedding Quilting Machine

Product Description

Product Description
Industrial continuous cotton quilt mattress bedding quilting machine
High speed single head cotton mattress making quilting machine is Mainly used for cotton, chemical fiber, wool, camel hair, silk quilt, bedspread, sleeping bags, mattresses.
1.Quilting speed: here are 1300r/pm, 2200r/pm, 2400r/pm, 2800r/pm, 3000r/pm (suitable for simulation cloth)
2.Quilting size: There are 2.4*2.6m, 2.6*2.8m, 2.8*3.0 m and so on.
If you need other sizes, we can customize it for you. Product Parameters

Model	2.2*2.4M	2.4*2.6M	2.6*2.8M	2.8*3.0
Power	2kw, 220v, 50/60hz, single phase
Max. Quilting size(m)	2.2*2.4	2.4*2.6	2.6*2.8	2.8*3.0
Max. Needle Drop Size(m)	2.0*2.2	2.2*2.4	2.4*2.6	2.6*2.8
Machine size(m)	2.8*2.8*1.1	3.2*3.2*1.4	3.4*3.4*1.4	3.6*3.6*1.4
Weight(kg/set)	700kg	880kg	950kg	1100kg

Detailed Photos

2800R/PM 1.Head: High-speed direct drive head
2.Motor: Spindle: Servo motor, X and Y axis: Stepper motor (all servo motors can be equipped)
3.Lubrication method: automatic oiling
4.The full LCD screen can support seven languages.
5.Automatic thread trimming function
1300R/PM 1. The square tube is 2.5mm thick, and the steel plate used for the upper frame is 3mm. The machine is stable and will not cause severe vibration and displacement.
2.Adopt brand computers, stepping motors, drivers, quilting heads, etc. in the industry.
3. The high-quality steel shaft is an important guarantee for the smooth operation of the machine. Our steel shaft is chrome-plated, and the hardness of chromium is large, which makes the steel shaft not easy to deform and will not cause broken needles and wires.
3000R/PM 1: QB-ARM system (advanced technology can move the frame instantly)
2: 10-inch LCD touch screen. Support 7 languages.
3: Pneumatic lift head.
4: Full servo motors (4 pcs).
5: Adopt 6 high-precision linear slider guides.
6: High-speed direct-drive head.
7: High-speed direct-drive cam automatic trimming bottom seat.
8: Automatic timing refueling.
9: The rotary shuttle automatically removes dust regularly.
10: Automatically press the quilt frame when quilting. Lubrication method: automatic oiling
Workbench
Standard size: 244*122cm.
According to actual needs, it can be customized.
A variety of patterns can be selected. With a pattern browsing function, can automatically recognize a variety of pattern formats, Computer LCD layout, simple and convenient operation.
Spare parts
1.Belts 2pcs
2.Bobbins 20pcs
3.Needle 50pcs 4.Clips 50pcs
5.Sensors 1pcs
6.Pressor bowl 2pcs
7.Bobbin cases 10pcs

Application
Packaging & Shipping
FAQ

---
