GRP FRP fiberglass pultruded pultrusion profile square Fiber rectangular tube
Pultruded Fiberglass tube is a proprietary combination of fiberglass reinforcements and thermosetting polyester or vinyl ester resin systems. FPR tube is produced in more than 100 standard shapes.
All Pultruded Fiberglass tube have a surface veil to protect against glass fibers penetrating the resin surface in service and to increase corrosion and UV resistance.
Date sheet of frp pultrusionIf there is no size you need of fiberglass tube, please contact us for more size we have mold of tube.
Series of our pultrusion profiles include square tube, rectangular tube, round tube, L-angle, I-beam, channel, rod and other custom profiles. Pultrusion process is a mechanized process for FRP composites, involves pulling a collection of fibers in the form of roving, mat or fabric through a resin bath and then through a heated die to cure the resin, and then take shapes of profiles.
We are also customized product according to your request.
Square tube
| Size
| Weight
|
Round tube
| Size
| Weight
|
| 25.4*25.4*3.2
| 535.00
|
| D19*2.5
| 245.00
|
| 30*30*5.0
| 950.00
|
| D22.4*2.5
| 296.00
|
| 38*38*3.2
| 880.00
|
| D24*2.5
| 320.00
|
| 38*38*6.4
| 1540.00
|
| D25.4*2.5
| 340.00
|
| 40*40*4.0
| 1155.00
|
| D32*3.0
| 550.00
|
| 40*40*6.0
| 1550.00
|
| D38*3.0
| 625.00
|
| 44*44*3.2
| 990.00
|
| D38*6.4
| 1200.00
|
| 44*44*6.4
| 1830.00
|
| D40*3.0
| 665.00
|
| 45*45*4.0
| 1245.00
|
| D40*4.0
| 858.00
|
| 50*50*4.0
| 1400.00
|
| D44*4.0
| 950.00
|
| 50*50*5.0
| 1710.00
|
| D48.3*5.0
| 1300.00
|
| 50*50*6.4
| 2110.00
|
| D50*4.0
| 1090.00
|
| 50*25*4.0
| 1020.00
|
| D50*5.0
| 1340.00
|
| 53*25*3.0
| 820.00
|
| D50*6.4
| 1650.00
|
| 54*54*5.0
| 1860.00
|
| D76*6.4
| 2640.00
|
| 60*60*5
| 2090.00
|
| D89*6.4
| 3140.00
|

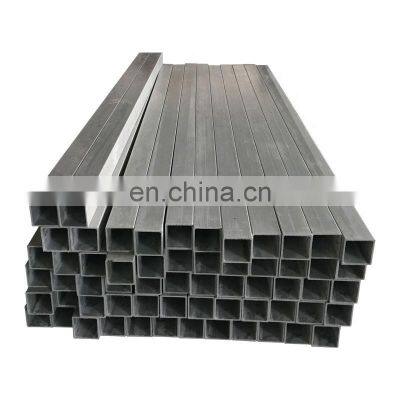

The square fiberglass tube
The fiberglass frp tube
Our factory and production process of fiberglass tube
The packing of fiberglass tube
Any purchase need about GRP FRP fiberglass pultruded pultrusion profile square Fiber rectangular tube, welcome contact me freely
>>
