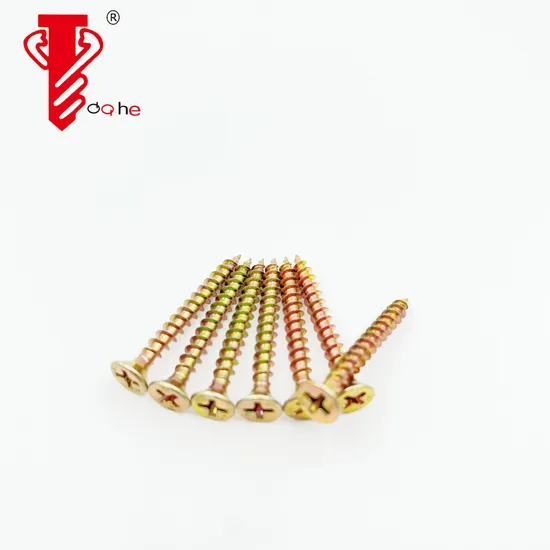

Carbon Steel Chipboard Screw Yellow Zinc Plated

Product Description

Chipboard Screw - Product Description

Product Description
Parameter Description

Material	Carbon Steel, Stainless Steel (SS304/SS316)
Surface Finish	Zinc Plated (Yellow/Blue-White), Phosphated (Grey/Black), Dacromet
Thread Type	Coarse Thread, Fine Thread
Head Type	Countersunk, Pan Head, Hex Head
Drive Type	Phillips, Slotted, Torx (Star Drive)
Diameter Range	M2.5 / M3 / M3.5 / M4 / M4.5 / M5 / M6
Length Range	12mm - 200mm
Thread Length	Full Thread / Partial Thread
Application	Chipboard, Particle Board, MDF, Plywood, Furniture, Woodwork
Features	Deep thread design for strong grip, self-tapping function, no pre-drilling required

1. Purpose & Application
Chipboard screws are specially designed for fastening chipboard, MDF, particleboard, and other composite wood materials. They provide strong holding power and are widely used in furniture making, cabinetry, and woodworking projects.
2. Thread Design
Features deep, coarse threads for maximum grip in wood-based materials. Ensures a firm, secure connection while reducing the risk of material splitting. 3. Sharp Point & Easy Installation
The sharp, self-tapping tip allows for easy penetration without pre-drilling. Reduces installation time and effort, making it ideal for professional and DIY projects. 4. Head Options
Commonly available with countersunk, pan, or washer heads to suit different applications. Countersunk head allows for a flush finish with the wood surface. Pozi or Phillips drive for efficient fastening with minimal cam-out. 5. Material & Finish
Made from hardened steel, stainless steel, or brass for durability and strength. Coated with zinc plating, yellow passivation, or black oxide for corrosion resistance. 6. Sizes & Customization
Available in various lengths and diameters to meet different project needs. Custom coatings and sizes can be manufactured upon request. Key Benefits Strong holding power in wood-based materials
Self-tapping design for fast and easy installation
Corrosion-resistant coating for durability
Versatile for woodworking, furniture assembly, and construction
Chipboard screws are the go-to choice for secure, efficient, and long-lasting fastening in wood-based applications.

---
