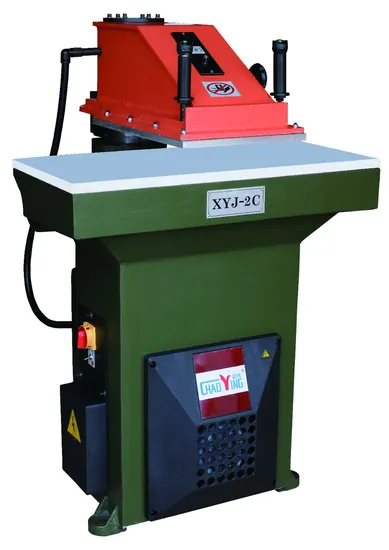

Atom Type Hydraulic Swing Beam Clicker Press

Product Description

Clicker Press
Atom type Hydraulic Swing Beam Clicker Press
Use and character
The machine is suitable for cutting single layer or multiple layers of leather, plastic, paperboard, fabric and other materials by forming cutter. It is an ideal cutting device for shoemaking, luggage & baggage, clothing, automobile, artwork, packaging, electronics and other industries.
1. There are two types of cutting modes for selection. The first type is small pressure stepless regulation. The second type is that the cutting adopts intelligent pressure feedback design function without the need of setting cutting point. The height of die cutter has no influence on the cutting and ideal cutting effect can be obtained from each cutting point.
2. Through double oil way static pressure supporting lubricating system, the vertical column makes operators' work more easy, flexible and worry-saving.
3. The main fittings are made of high quality imported assemblies, which have characteristics such as reliable quality, low noise, high efficiency and energy saving.
4. Operating with two hands make sure of workers' safety
Main technical parameters

Maximum	22T
Range of stroke	0-70mm
Distance from upper pressing board to worktable	35-105mm
Size of the upper pressing board	360* 430mm
Size of lower cutting board	900*430mm
Main motor power	1.1kW
Electric Supply Voltage	3x440/400/380/220/200V, 50/60 Hz or as optional
Net weight	650kg
Gross weight	720kgs
Dimension	900*900*1350mm
Drive	hydraulic oil
Hydraulic oil	46# or 68#
Machine logo	Chaoying or customerized
OEM	Welcomed

The die cutter for this model of machine :
Application industries :
Factory photo :
Other machines :
Attending fair :
Customers' visit :
FAQ : Why choose us?
1. More than 20 years experience in the field of die cutting machine and we are a factory.
2. Strictly Quality control. Quality is our culture. With us your business in safe, your money in safe.
(We have our own quality control team compare with other company, every product will be checked
again
and again before delivery according to SGS standard, so you can buy the goods with high quality.)
3. Competitive price and quick delivery time.
4. OEM and ODM service.(We have OEM for many oversea customers and we have our own ODM
team which can produce products on your demand)
5. Professional salesman and good service in 7 days in week and 24 hours one day .
6. Solving ability for problem and strong responsibility.
Not all the supplier have the problem - solving ability(Someone transfer the responsibility to customer,
someone lack the problem - solving ability),Xiongying will take full responsibility of your machine and
your money safety.
7. Payment term: T/T, L/C .
Package and shipment :

---
