US$17,000.00-22,000.00
|
1 Set
(MOQ)
|
Basic Info.
Automatic Grade
Automatic
Certification
CE, ISO9001: 2000
After-sales Service
1 Year
Production Speed
300-400PC/Min
Keyword
Cotton Pad Making Machine
Raw Material
Nonwoven Material
Size
2500mmx1500mmx1600mm
After Sale Service
1 Year
Raw Material Diameter
700mm
Finish Product
Cotton Pad
Brand Name
Lebon Industry
Transport Package
Wooden Packing
Production Capacity
10set/Month

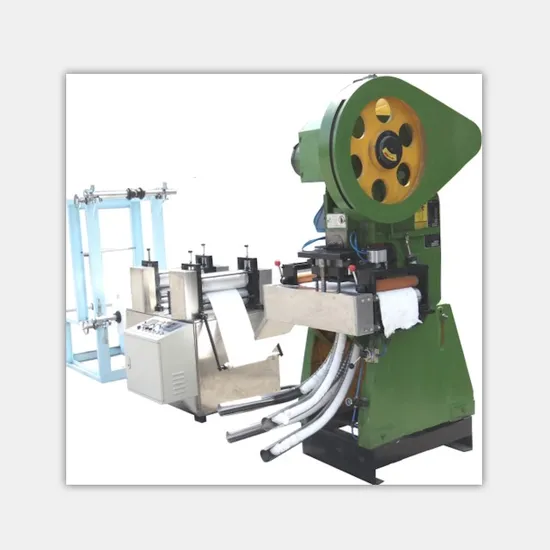

Product Description
Application:
It is suitable for the cutting of cotton pads with rotundity, square and ellipse shape. Multi working procedures in one machine with high capacity, multi cavities in one cut mould (if work time as 100time/min, 4 cavities in one cut mould, and the capacity can arrive 400 pieces/min) . Automatic count, directly to pack, high efficiency, and worker use less. The finish cotton pad quality is very good.
Feature: 1. Puts on make-up the cotton and kapok production process: This equipment is divides cuts the good degreasing to lap, the adhesive-bonded cloth or the gauze, laying aside raw material after the compaction, the heating embosses, rolls cuts process one time to complete;
2. The main feature The high speed punch press revolving blanking principle of work, the technology is mature, the work is stable, the service work load are few;
3. Output mode: The pipeline arrangement output, the code falls neatly, the bagging is convenient, a person then operates the complete machine, big reduced artificial amount of use;
4. The good man-machine operation contact surface, may unfold the real time operation information, is advantageous for the production monitoring;
5. The mold replacement is convenient, the construction cost is lower than greatly rolls cuts the carving flower cutter bar, moreover after the mold wears, easy to repair, does not need to discard the replacement, saves the maintenance cost;
6. Put on make-up the cotton and kapok .
Specification:
Name
| Cotton pad making machine
|
Power
| 380V 50HZ
|
Product size
| Length (adjustable) Width 12CM
|
Machine type
| Fully automatic
|
Packing Speed
| 300-400 pieces/min
|
Machine Size
| 2500*1500*1800mm
|
Machine weight
| 800kg
|
Display and control
| Computer touch screen, PLC control
|
>>
