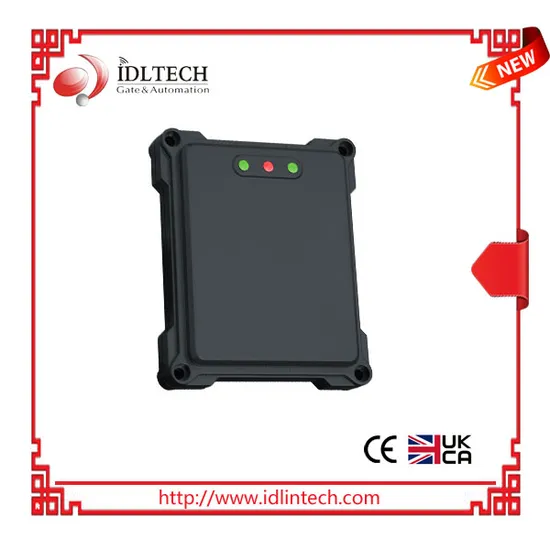

Barrier Gate Radar Detector Sensor for Parking Boom Barrier Gate Control

Product Description

Product Description The vehicle detector adopts 24GHz monolithic transceiver chip from Germany and multi-layer composite PCB antenna. Due to its high integration, high bandwidth and low noise, its working spectrum and measurement accuracy are stable and it can be used for barrier with straight arm to avoid any hitting.

Product Parameters 1) Input Voltage: DC12V 200mA
2) Working Frequency: 24GHz
3) Modulation Mode: FMCW
4) Sending Power: 10-12dBm
5) Horizontal Beam: <35°
6) Vertical Beam: <17°
7) Detection Distance: 1 - 6 meters, ±0.1 meters
8) Working Temperature: -40ºC~+85ºC
9) Protection Level: IP67

Detailed Photos
Certifications

Installation Instructions 1) The trigger radar and the anti-smash radar should be installed perpendicular to the lane's direction. The anti-smash radar is installed on the cabinet below the barrier pole. The trigger radar is installed on the special bracket for the radar installation. The optimal height from the ground to the radar center is 0.6 meters.
2) The barrier's cabinet must be fixed firmly to avoid shaking when the barrier is working.
3) Within the detection area, there should be no obstacles other than the barrier pole, e.g. traffic cones, isolation bars, signs, etc..
4) Please update the radar background in time after the environment in the detecting area is changed.

Our Advantages Are you still troubled to install loop detector and loops?
1) Cutting ground-Waste time and not good looking;
2) Complex wiring-Messy and Difficult;
3) Mud road-Cannot fix the loop;
4) Cannot detect big truck, trailer or other vehicles with high-bed.

Why choose barrier radar detector?
1) Can replace loop detector completely; no wiring layout, save time and cost.
2) Easy installation; Easy parameters setting; Adjustable distance from 1 to 6m.
3) Work in range of 24-24.5Ghz without effects from any climatic environment.
4) Can effectively distinguish vehicles and humans to avoid any hitting.
5) Can be used for trigger detection, e.g. trigger camera to capture the picture.
6) Can be used to trigger the alarm in the warning zone.
7) Can record the traffic and no data is lost when power is off.

Wiring Definition

Color	Definition
Red	Power Input +12VDC
Black	Power Input GND
Blue	Relay Output COM
Green	Relay Output NC
Purple	Function Switch Input
Brown	Function Switch Input Ground
White	Relay Output COM
Yellow	Relay Output NO
