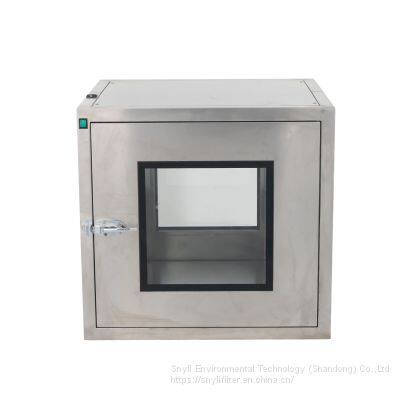

Cleanroom 304 Stainless Steel Pass Box with UV Germicidal Lamp Interlock System

Product Details

Product Description

Product Description
Pass Box is a kind of auxiliary equipment in clean room, which is mainly used for the transfer of small items between clean area and clean area, and between clean area and non-clean area, in order to reduce the opening frequency of cleanroom and reduce the pollution to the minimum level.
Cleanroom Pass-through Box made of stainless steel plate, smooth and clean.The double door interlocks with each other, effectively preventing cross-contamination. It is equipped with electronic or mechanical interlocks and equipped with an ultraviolet sterilizing lamp.
Cleanroom Pass Through Box is widely used in micro science and technology, biological laboratories, pharmaceutical factories, hospitals, food processing industry, LCD, electronics factories, and other places that need air purification.
Product Features:
1. The box is made of stainless steel SUS304, and the working area is arc-shaped.2. There are interlocking devices on both sides of the door to ensure that the doors on both sides cannot be opened simultaneously
3. Built-in double-layer tempered glass window.
4. The clean transfer window has the function of automatic blowing shower, and it can effectively remove the dust carried on the surface of the article during the transfer of the article.
Specifications:

Product Name	Dimensions (WDH)	Internal Dimensions(W1D1H1)
Pass Box	760660660	600600600
Optional Accessories
Mechanical lock	Stainless Steel Cabinet	UV Germicidal Lamp
Buzzer	Walkie Talkie

Cleanroom Pass Box Configuration Instructions:
1. stainless steel 304 material, the internal arc structure, easy to clean.
2. With PAO injection interface and test interface, using 304 stainless steel quick connector
3. Equipped with H14 liquid tank sealed high-efficiency filter with high-efficiency differential pressure gauge.
4. with ultraviolet germicidal lamp, sterilization time can be adjusted arbitrarily, and with sterilization timer and sterilization time accumulation function can be arbitrarily set whether the germicidal lamp and the fan start at the same time.
5. Self-developed LCD panel controller with two magnetic locks interlocking. There are two types of automatic and manual for users to set. In the automatic mode, users can set multiple functions by themselves, with time and function display, and call function.
6. It can be set to automatically start the fan supply mode at the same time after closing the door.
7. Built-in door, double black tempered glass with desiccant.
8. Fan, customized special fan, adjustable air supply time.
9. Design new air outlet (set in the high-clean area), increase internal positive pressure, adjustable air supply volume.
10. Accept special designs from users.
Installation Method:
Choose a convenient location on the wall and open a hole. The hole is usually about 10mm larger than the outer diameter of the pass box. Put the pass box on the wall, usually install it in the middle of the wall, keep it balanced and fixed, and decorate with rounded corners or other decorative strips. The gap between the pass box and the wall can be sealed and modified with glue.
Operating Specifications:
1. Use 0.5% peroxyacetic acid or 5% iodophor to wipe the items to be delivered.
2. Open the outer door of the pass box, quickly place the items to be transferred, disinfect the pass box with 0.5% peroxyacetic acid spray, and close the outer door of the pass box.
3. Turn on the UV lamp in the delivery window, and irradiate the items to be delivered with UV for no less than 15 minutes.
4. Notify the experimenter or staff in the barrier system to open the door inside the delivery window and take out the items.
5. Close the door inside the pass window.
