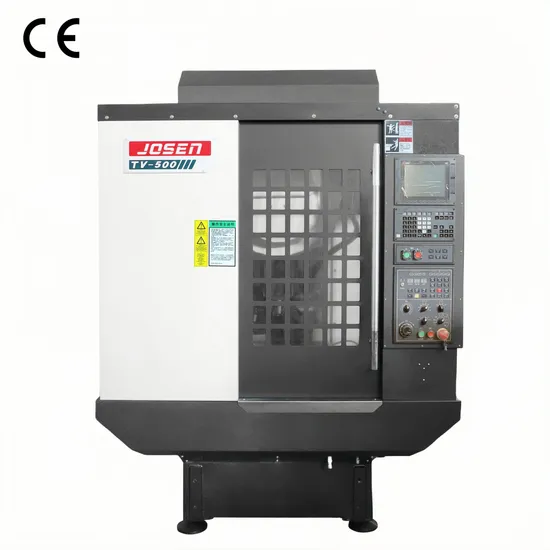

CNC Machine Centers for Cutting, Drilling, Milling and Tapping TV-500

Product Description

5-Axis CNC Vertical Horizontal Care Turning Milling Machining Machine for Metal/Wood/Plastic Part Cutting Drilling Router Tapping Engraving for Sale TV-500

Basic Info:

Main technical parameters	Unit	TV 500	TV 700	TV 1000
X-axis travel	mm	500	700	1000
Y-axis travel	mm	400	400	500
Z-axis travel	mm	350	350	350
Distance from nose of spindle to table surface	mm	150-500	150-500	180-530
Working table size (X*Y)	mm	650*400	850*400	1100*500
Table T-slot size (width * number of slots * spacing)	mm	14*3*125	14*3*125	14*5*80
Max. loading capacity of working table	KG	250	250	400
Spindle motor (continuous/30 minutes)	kw	3.7/5.5	3.7/5.5	3.7/5.5
Spindle speed	rpm	10-20,000	10-20,000	10-20000
Spindle inner taper bore		BT30	BT30	BT30
X/Y/Z axis motors	kw	1.5/1.5/2.2	1.5/1.5/2.2	3.0/3.0/3.0
Rapid feed rate (X/Y/Z)	mm/min	48000/48000/48000	48000/48000/48000	48000/48000/48000
Fastest cutting feed rate	mm/min	1-10,000	1-10,000	1-10000
Tool magazine capacity (standard/optional)	set	21	21	21
Tool magazine form		Arm type	Arm type	Arm type
Tie rod bolts form		MAS-P30-1(45°)	MAS-P30-1(45°)	MAS-P30-1(45°)
Maximum tool diameter of adjacent tools		Ø80	Ø80	Ø80
Max. tool diameter of empty adjacent tool		Ø80	Ø80	Ø80
Maximum tool length	mm	200	200	200
Maximum tool weight	kg	3	3	3
Positioning accuracy (full stroke)	mm	±0.005	±0.005	0.01
Repeat positioning accuracy (full stroke)	mm	±0.003	±0.003	0.005
Controller		Mitsubishi M80	Mitsubishi M80	Mitsubishi M80
Water tank capacity	liter	170(Back)	170(Back)	300(Back)
Pneumatic pressure requirements	kg/cm2	6	6	6
Power Specifications		AC380±10%,3 phase,60Hz/50Hz	AC380±10%,3 phase,60Hz/50Hz	AC380±10%,3 phase,60Hz/50Hz
Electricity demand	KVA	20	20	20
Floor space (L*W)	mm	1630*2450 (Back)	2050*2450 (Back)	2550*3000 (Back)
Machine height (maximum)	mm	2270	2270	2550
Machine weight	T	2.5	3	5000

Our Advantages
VMC Machine Center Features: High quality resin sand Taiwan spindle Taiwan ball screw and locking nut Taiwan pressure cylinder Taiwan linear railway Japanese NSK bearing germany R+W coupling Automatic lubrication system Chip conveyor at optional.
Machine Center Application: This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Detailed Photos
Company Profile
Packaging & Shipping

FAQ

1. What is your product range?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.
2:What kind of controllers do you use on machines?
A :Siemens, GSK, Fanuc, Syntec etc. You can choose as your request.
3. What is your trade terms?
A : EXW, FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me model or technical parameter you need, tell us what you want to do by using CNC machining center, we can provide machine with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5: What's the payment terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
6. What about the after sale service?
We provide one year warranty, if any parts broken, we will send you a new one for free.

7.Before sending me an inquiry on our machine, it is better for you to provide me the following information?
1)Your metal workpiece size. Because in our factory, we have different models according to working area.
2)Your workpiece materials.
Aluminum/Steel/Iron/Titanium Alloy?
3) You also can send us the drawing of your workpiece, so that we can have a moe careful check and give your more accurate suggestions.

---
