Water-Cooling Type Double-Stage PP/PE/Pet Plastic Recycling Machine

Product Description

Plastic Recycle Machine
We supply different kinds of Plastic Recycle Machine,for PE,PP,PVC,PET,PS,EPS ETC.
We have from 50-500KG/hours,including water cooling recycling,rotary cutting system recycling,force feeding system,washing line etc.

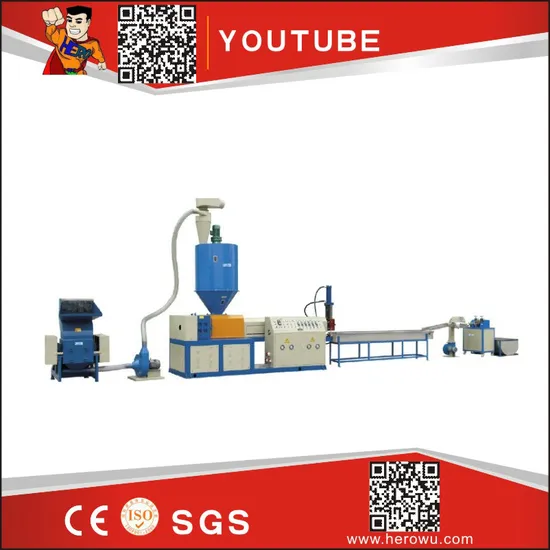

Process:Force Feeder --- Extruding-Water Cooling----Air Blower----Cutter ---Material Receiver
Welcome to contact us!
This machine is suitable for regeneration and granulation of waste plastics,as PE,PP,PETetc. It is equipped with quick motor-operated filter-screen replacing unit and automatic temperature control. The granulating crusher uses adjustable speed motor,pelleting with an extruding machine at the same discharging speed synchronistically.The unit is easy to operate,with a high output,steady performance, and favorable economic benefit.
1. Screw and barrel: made of 38 CrMoAl, inlet mouth is coverd special alloy (screw dia.120,long dia.ratio 28:1 )
2. Gear box: ZLYJ225 made of top quality special alloy
3. Motor: 45 kw-4p General motor
4. Control box: digital meter
5. Heat loop: stainless steel and copper
6. Water tank: water cooling 2500 mm
7. Blower:1.5kw-2p
8. Mould: hydraulic Mould head
9. Granule cutter : 200*160 , 3KW-4P electromagetic adjusable speed motor
10. Output:90-500 KG/HOUR

---
