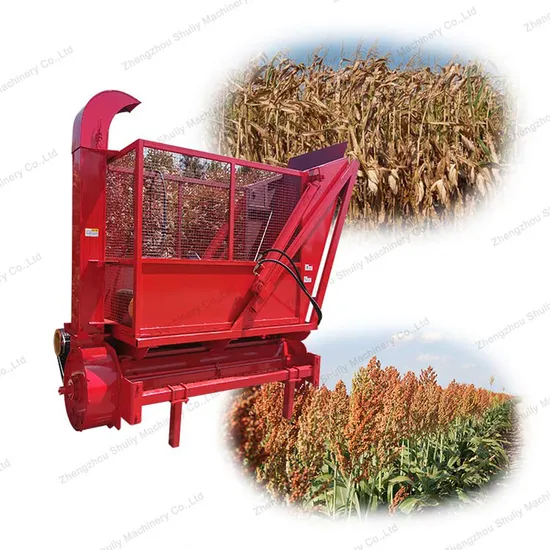

Corn Silage Harvester Forage Mounted Harvesting Machine

Product Description

corn silage harvester forage mounted harvesting machine

Introduction of multifunctional forage silage harvester
This straw silage harvester mounts with a tractor. It can complete cutting, harvesting, crushing, throwing, and collecting continuously. It is mainly used for erect or tiled corn straw, sorghum stalk, or pasture grass.
Application of multifunctional forage silage harvester
1. It is suitable for harvesting and crushing various upright or fallen dry and wet crops such as corn straw, sorghum straw, grain straw, forage grass, etc.
2. The harvested and crushed crop straw can be directly used in livestock farms, silage feed processing factories. It can also be used in the production of biomass power generation fuels such as charcoal and straw coal. It can also be used as the culture medium for mushroom growers and other industries.
Structure of multifunctional forage silage harvester
1. The straw silage harvester machine utilizes the output power of the tractor power output shaft and transmits the power to the harvester machine through the universal joint. The machine utilizes gear shifting and V-belt transmission to drive the shaft to rotate at high speed to cut the straw.
2. The machine mainly consists of suspension part, variable speed transmission part, cutting and crushing part, recycling and conveying part, and fan part.
Work process of multifunctional forage silage harvester
1. Firstly the operator connects the silage harvester machine with a tractor.
2. rotating blades constantly cut the straw when it begins to work.
3. The straw goes into the crushing part.
4. Then the fan blows the small pieces into the lifter.
5. Lifter conveys the small pieces into the container.
6. Finally, the hydraulic device on the tractor powers machine to unload the crushed straw.
Technical parameters of multifunctional forage silage harvester

Model	4JQH-135	4JQH-150	4JQH-165	4JQH-170	4JQH-180	4JQH-200
Size(m)	1.5*1.81*3.35	1.48*1.98*3.5	1.48*2.13*3.5	1.48*2.18*3.5	1.48*2.28*3.5	1.68*2.46*3.36
Weight(kg)	640	700	790	820	980	800
Capacity(hm²/h)	0.25-0.48	0.3-0.5	0.32-0.55	0.35-0.58	0.36-0.6	0.36-0.72
Harvesting width(m)	1.35	1.5	1.65	1.7	1.8	2
blade Quantity	32	40	44	44	48	52
Power(kw)	29.4-44.1	40-51	40-59	45-62	48-66	66.2-88.2
Recycling rate	≥80%
Fling distance(m)	3- 5
Fling height(m)	≥2
crushed straw length(mm)	≤80
Stubble height(mm)	≤150
ground clearance(mm)	≥320
Cutter shaft speed(r/min)	2160
Working speed(km/h)	2-4

We have many models of corn maize silage harvester machines for you to choose from.
Each one has different harvesting ranges. The tractor horsepower for different
harvesting widths is different. please contact us to know more.
The successful case of silage harvester machine
This year, our customers from Pakistan and Ecuador had ordered 10 sets of straw cutter machines with great satisfaction. He asked us for many details such as cutting width, tractor, recycling rate, etc. We aim to solve every problem our customer has and provide the best service. Influenced by patience and professional skills, he introduced our machine to his friends after receiving the machine.

---
