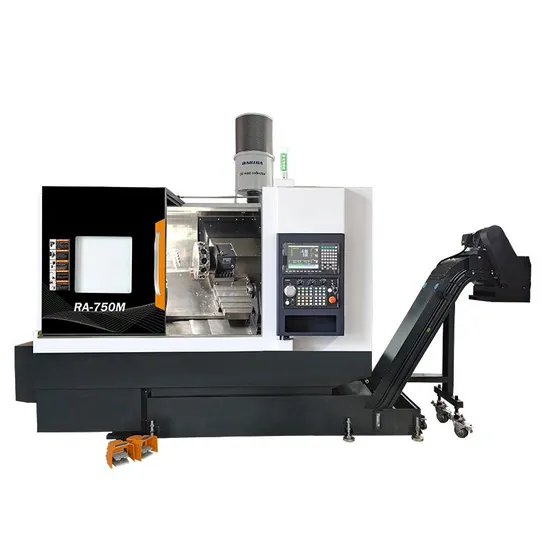

Metal Slant Bed CNC Turning Milling Lathe Machine Center with High Precision

Product Description

Metal Slant Bed CNC Turning Milling Lathe Machine Center with High Precision
Product Description

Processing Capability			Unit	RA-750M
Processing Capability	Maximum bed swivel diameter		mm	Φ580
	Maximum machining diameter		mm	Φ420
	Maximum machining diameter on the tool holder		mm	Φ370
	Maximum processing length		mm	510
	Maximum bar through-hole diameter		mm	Φ52
Machining dimensions will change with turret selection.
Spindle	Nose of spindle		ASA	A2-6
	Spindle through-hole diameter		mm	Φ65
	Maximum spindle speed		rpm	4000
	Hydraulic cylinders/chucks		Inch	8''
Axis feed	Axis travel	X-Axis	mm	260
		Z-Axis	mm	800
	Travel Speed	X-Axis	mm	24
		Z-Axis	mm	24
	Rail Type		/	Linear track 45 (ball)
Turret	Number of tool positions		pcs	BMT55-12T
	OD tool holder specifications		mm	25x25
	I.D. Tool Holder Specifications		mm	Φ40
Tailstock	Hard rail as standard		/	Z-axis driven
	Maximum travel of tailstock rail		mm	750
	Tailstock Sleeve Taper		mm	Morse #5
	Tailstock Sleeve Diameter		mm	Φ80
	Tailstock sleeve travel		mm	80

Optional accessories:

Oil-water separator

Oil Mist Absorber

Fully automatic feeding machine

Electric cabinet air conditioner

Rotatable window

Workpiece probes

High pressure water pumps

Chip conveyor

Tool setting arm

Detailed Photos
Control System
Anoher Advantages
• Experience unparalleled processing conditions in a state-of-the-art production environment that ensures optimal performance and superior outcomes.
Our cutting-edge imported equipment, including horizontal and vertical machining centers, CNC boring machines with rotating tables, and gantry guideway grinding machines, guarantees exceptional workpiece precision. This significantly enhances assembly accuracy and prolongs the longevity of performance.
• State-of-the-Art Detection Methods
Positioning accuracy is rigorously tested and precisely calibrated using advanced laser technology, strictly adhering to the stringent German VDI3411 inspection standards (5 tests per standard).
Each machine tool undergoes stringent processing tests before leaving our factory, ensuring they not only meet but exceed actual processing accuracy standards.
Product sample
• Experience unparalleled efficiency with our Automated 4-Axis CNC Drilling Milling Center, where advanced milling, drilling, and tapping functionalities converge seamlessly. This state-of-the-art vertical machine redefines productivity and precision.
• Master the art of precision with our CNC machine, expertly designed to handle a diverse range of materials including aluminum, steel, copper, and even non-metal profiles. Achieve superior craftsmanship and meticulous detail in every project.
• Elevate your production capabilities across multiple industries, from 3C electronics and rail transportation to aerospace and linear module guide rails, with our versatile CNC machining solutions. Our cutting-edge technology ensures unparalleled versatility and performance.
Packaging & Shipping
•Highly Protective: Our packaging solutions are meticulously engineered to ensure that the Vertical CNC Drilling Machine Center remains safe and secure throughout its journey. With robust protection, we safeguard against any potential damage, ensuring peace of mind and product integrity.
•Structural Stability: Our packaging is thoughtfully designed to uphold the machine's structural integrity. Each component is securely protected, guaranteeing that the machine arrives in pristine condition and is ready for immediate, hassle-free operation.
•Environmentally Friendly and Recyclable: Embracing our commitment to sustainability, we utilize packaging materials that are both durable and eco-friendly. Our fully recyclable solutions minimize environmental impact, harmonizing robust protection with responsible stewardship of our planet.
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T payments with a 40% initial deposit required upon ordering and the remaining 60% balance due before shipment.
2. What are your trade terms?
A: Our trade terms include FOB, CFR, and CIF, offering you the flexibility to choose what suits you best.
3. When is the delivery time?
A: For our standard Vertical CNC Drilling Machine Center, we can have your order ready within 30 days. Custom or special machines might require additional time. Please place your order according to our provided delivery schedule.
4. What is your minimum order quantity and warranty?
A: Our minimum order quantity is one set, and we proudly offer a comprehensive one-year warranty.
5. How are the machines packaged?
A: Each machine is meticulously packed in a sturdy wooden case to ensure it reaches you in perfect condition.
6. How can I choose the most suitable machines?
A: Simply provide us with your specifications, and we will recommend the most suitable model for your needs. You also have the option to select the exact model yourself.
Alternatively, you can send us your product drawings, and we will identify the ideal machine configuration for you.

---
