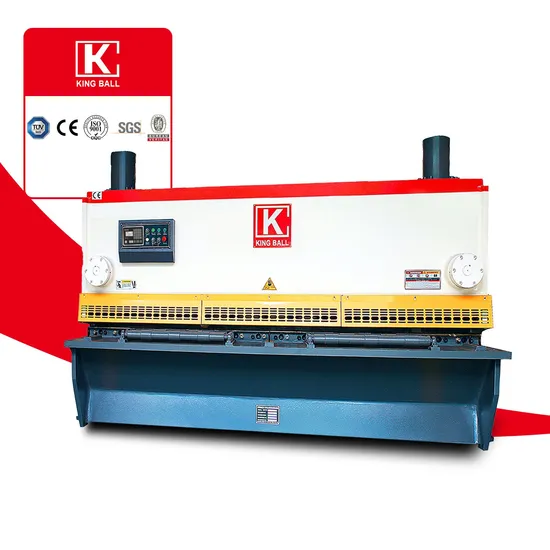

2.5/3.2/4/6m Hydraulic Guillotine Shearing Cutting Machine

Product Description

Products Description

Main functions and features 1. The machine employs hydraulically-driven swing beam, the steel plate welded structure, and accumulator -based pullback cylinder with steady and reliable operation.
2.Indicator-based adjustment of gap of blade is convenient and fast.
3. The machine is equipped with lighting alignment device, and uses stepless control for the stroke of up tool carrier.
4.The machine uses protection fence for safe operation.
5.Digital display device for size of back gauge and shearing times available.

Hydraulic Swing Beam Shearing Machine	QC12Y-6X2500	QC12Y-6X3200	QC12Y-6X4000	QC12Y-6X6000
Cutting Thickness (mm)	6	6	6	6
Cutting Width (mm)	2500	3200	4000	6000
Throat Depth (mm)	100	100	100	100
Cutting Angle (o)	1.5	1.5	1.5	1.5
Backgauge Range (mm)	20-600	20-600	20-600	20-800
Stroke Number (times/min)	≥12	≥11	≥9	≥5
Main Motor (kw)	7.5	7.5	7.5	7.5
Weight (kg)	4800	6000	8200	16500
Overall Dimensions (LxWxH in mm)	3150X1700X1650	3850X1700X1650	4650X1850X1700	6780X2100X2300

Pneumatic Sheet Support System Monobloc Panel Type support system:
Avoids hanging down the wide and thin sheets via pneumatic table support and provides more precise cuts. Anti-twist System Anti-twist system contrasts the piece warping by pushing it against the upper blade.
The unique Anti-Twist system of kingball guillotine shears consists of a series of hydraulic cylinders placed below the lower
blade, which support the sheet metal against the upper blade.
The cylinders exert a counter-pressure in proportion to the thickness, thus compensating the twist effect of the sheet. Front Feeding Table Feeding the metal sheet automatically controlled by PLC ,the precision of the feeder is more accurate
The clamp adopts pneumatic clamp, which has reliable supporting power, wide processing range and convenient operation.
Jinqiu CNC Machine Tool Co., Ltd
has been focusing on research and design, manufacturing and sales of better prices with better quality machines such as Press Brakes, Shearing Machines,Rolling Machines,Press Machine,Ironworkers,Pipe Bend Machine, press brake tooling blade and so on, our brand is Kingball ,since it was established in 2003. Kingball is a true expert of machine- manufacturing based on more than 15 years experience.
Our Company has got the certification of ISO9001,SGS ,CE ,TUV and BV have been exported to more than 60 countries including UK, USA, Italy, Spain, Ireland, India, Thailand, Malaysia, South Africa, and so on.
We have 28,000 square meters workshop, advanced production equipment,220 experienced staff, and strictly effective quality assurance system. Kingball selects best material and parts for the machines and the most important is Kingball manufactures most of the parts by itself for better to control the quality. Therefore Kingball brand products win the reputation of practical, reliable and durable.
Nowadays our company is developing the global market, We are currently looking for all agents and powerful cooperation globally to sell our products worldwide. We are glad to try our best to supply Free technical support and related information all of the China Machine. Any advise you have , please do not hesitate to contact with us for your requirement, thank you!
Our Certificates
Welcome to visit our factory,our customers from all over the world!
Sound and Reliable After-sale Service The shearing machine warranty period is 2 years and shear blades warranty period is 1 year, will run since bill of lading date,if the accessories appear damaged during the warranty period, except for damage caused by improper human handling, we can replace them for the buyer for free. For Installation & Commissioning engineer go oversea, the customer needs pay for visa apply charges, a round-trip ticket for plane,100USD per day for the engineer's business travel allowance from he takes the plane until he takes plane back, and cover the local accommodations. We can also provide the video technical support when you receive the machine for your reference. All mails will be replied in the first time within 12 hours,all social software message will be dealt with in real time. Regularly update the production of the machine to the customer through photos and videos, follow up the order continuously, and seek the feedback from the customers.

---
