Heavy Duty Rubber Ship Lifting Launching Inflatable Marine Airbags

Product Description

Product Description
How to select marine airbags?Marine airbags can be divided into winding type and lap type airbags, and winding type airbags are divided into high pressure explosion-proof type and ordinary type. What is the type of selection of Marine airbag we usually talk about? Which type of airbag is most suitable for the shipyard according to its own conditions?
Actually lap type air bag is an old process, and compared with the winding type of air bag is a new type of air bag production process, relatively safe and reliable, but also the current mainstream, so the choice should be inclined to the winding type more.
Secondly, the choice of air bag depends on the material, here is also the key, to choose nylon cord line, the use of low grade cord to do the air bag, which is easy to lead to leakage and even the danger of explosion; And the rubber must be pure natural rubber, so as to achieve the high pressure resistance of the air bag. Thirdly, appropriate ship specifications should be selected. For example, if the width of the ship is 10m, airbags of 10m length should be selected, not 9m (too small), let alone more than 10m (wasteful of resources and money). If there is really no specific grasp, it is best to tell us the specifications of the ship, we will help to design a most appropriate ship airbag; In addition, the number of air bag layers must reach the standard, because if the ship is too big and the number of air bag layers is too low, it can not withstand high pressure, and there will be the risk of explosion.
Specification of launching rubber airbagShip launching airbag also known as marine airbag, rubber airbag, lifting rubber airbag , ship salvage airbag, inflatable airbag, boat lift air bag, air balloon, made by rubber & multi layer of rubber-dipped tyre fabric.

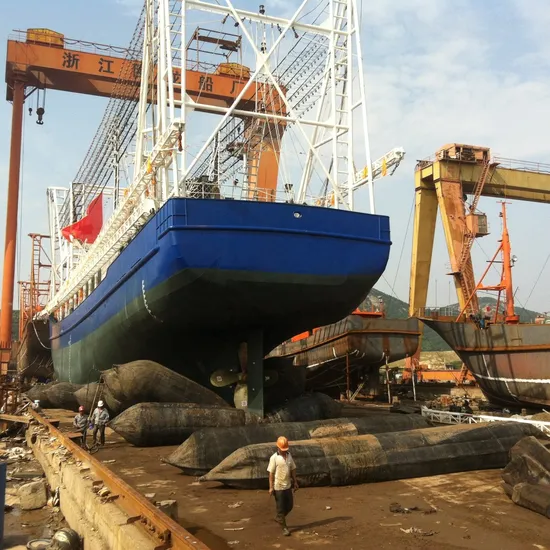

Ship launching airbags are widely used in launching and landing ship/ boat/vessel, lifting and moving heavy goods, salvaging stranded boats. Marine airbags are very popular with shipyard, ship owner, and marine supplies company now.
Advantages of Ship launching airbag
1. long lifespan
2. movable and reusable
3. saving investment costs
4. saving labor and time

Some normal sizes of our launching rubber airbags , other sizes are also available
Diameter(m)	Effective Length(m)	Layer	Pressure(Mpa)
1.0	10	5~6	0.07~0.10
1.0	12	5~6	0.07~0.10
1.0	15	5~6	0.07~0.10
1.2	10	5~6	0.08~0.12
1.2	12	5~6	0.08~0.12
1.2	15	5~6	0.08~0.12

1.5	12	5~8	0.08~0.16
1.5	12	5·8	0.08~0.16
1.5	18	5~8	0.08~0.16
1.5	20	5~8	0.08~0.16
1.5	24	5~8	0.08~0.16
1.8	12	5~8	0.08~0.15
1.8	15	5~8	0.08~0.15
1.8	18	5~8	0.08~0.15

1.8	20	5~8	0.08~0.15
1.8	24	5~8	0.08~0.15
2.0	18	6~10	0.08~0.18
2.0	20	6~10	0.08~0.18
2.0	24	6~10	0.08~0.18
2.5	18	7~10	0.07~0.13
2.5	20	7~10	0.07~0.13
2.5	24	7~10	0.07~0.13

Qingdao Jerryborg Marine Machinery Co., Ltd is a professional manufacturer of rubber airbags, located in Qingdao, China. The company covers an area of 20,000 square meters and offers a wide range of products with dozens of models and hundreds of specifications. Our products are known for their lightweight, durability and environmental friendliness, and they have been widely used in the fields of water transportation and rescue.
Qingdao Jerryborg Marine Machinery Co, Ltd possesses a strong technical foundation, advanced manufacturing processes, modern production equipment, comprehensive testing instruments, and scientific testing methods. lt complies with international standards such as ISO, ASTM, the European Union, and PIANC Moreover, the company has successfully passed third-party inspections from organizations such as China Classification Society (CCS), Bureau Veritas (BV), Lloyd's Register (LR), Technical lnspection Association of Germany (TUV), Swiss SGS, Intertek, and Germanischer Lloyd (GL).At present, our company's products have been exported to over 80 countries and regions worldwide. To meet the diverse needs of various portsterminals, and vessels, we have established long-term collaborations with institutions such as the Chinese Navy, China Maritime Surveillance, the Ministry of Transport of China, China State Shipbuilding Corporation and Beijing Rubber lndustry Design and Research lnstitute. We have also formed a dedicated research team to continuously develop new rubber airbag products and enhance the performance of our existing ones.
Our company consistently adheres to the principles of "integrity as the foundation, customer-centric, quality foremost, and the pursuit of excellence.' We are committed to providing our customers with high-quality products and services through advanced scientific technology and a reliable quality management system. Let us collaborate sincerely to jointly contribute to the prosperity and development of various industries.
Airbag Details
Test Of ProductsAfter the completion of production, we definitely carry out routine tests and inspections of marine airbags, including appearance inspection, dimensional deviation test, air tightness test and pressure test, which making sure our products meet ISO14409-2011standards.
Packing And Shipping
FAQ
1. "I have many ships but don't know how to choose the size of rubber floating airbags , can you help me?"
Answer: Don't worry .We are direct manufacturer with more than 20 years' experience. Pls tell us your ships' information , we will suggest suitable rubber floating airbags size and quantity for you.
2."I want to try your rubber floating airbags, but I never use it and don't know how to use ,can you help me?"
Answer: Don't worry. We will send instruction book together with floating airbags. We also have video . And we can go to your place to teach you use rubber floating pontoons on site.
3."What's the MOQ of your rubber floating airbags?"
Answer: Our MOQ is 1PC.
4."Whats' the lifespan of your rubber floating airbags?"
Answer: Designed lifespan of our rubber floating pontoon is 8 to 10 years.
5."What's the warranty period of your rubber floating airbags ?"
Answer: Our warranty period is 2 years. we will responsible for the repairment or replace the new rubber floating pontoons for you if it proved to be our quality problem.
6."What kind of certificate can you provide for rubber floating airbags?"
Answer: ISO9001,CCS, BV, SGS etc. certificate is available.

---
