Bsg2413r Woodworking Bottom Surface Wide Belt Sander

Product Description

We supply high quality BSG2413R Bottom Surface Wide Belt Sanding Machine

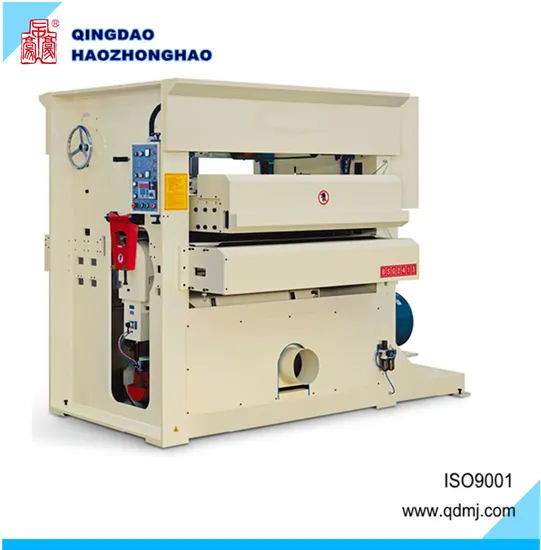

1.Product show
2.Product Description

Model	BSG2413R
Working width	40--1300mm
Working thickness	2.5--140mm
Speed of sandpaper	25m/s
Size of sandpaper	1330*2620mm
Feeding speed	13-100m/min
Power of 1st sanding unit	75Kw
Conveyor motor power	11kw
Lifting power	0.75kw
Brush roller power	0.37kw
Roller diameter	φ420mm
First roller material	Steel roller
Working pressure	0.6Mpa
Volume of dust collection device	18000m³/h
Overall dimension	2100*2900*2520mm
Weight	5600Kg

3. Function and Characteristics:
1 This machine is for sanding the bottom surface of all kinds of wood panel, specially adopt in plywood production line with top surface sander.
2 Oblique beam structures improves the sanding quantity and panel surface smoothness
4.Machine details
5.Company Information
Qingdao Haozhonghao Woodworking Machinery Co., Ltd. previously was Qingdao Woodworking Machinery Manufacturing Company, and was established in 1958.
With more than 50 year experience in making woodworking machines, our main products are Sanding Machine, Panel Saw, Guillotine, Veneer Slicer and Grinder. We firstly put BB1342 vertical slicer into the market in China. We developed BB1135B Horizontal Veneer slicer by integrating the internal and international technologies, the max slicing width reaches 1300mm. We are the first company which was certified by ISO9001 in the industry, and also a hi-tech enterprise in Qingdao.
We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Veneer Slicer and Grinder.
Our website is sandingmachine.en.made-in-china.com; you could get more information about our company and our products.

6.Packaging & Shipping

---
