ANSI High Voltage 15kv to 46kv Low Temperature Resistance Transformer Bushing Insulator

Product Description

Product Description

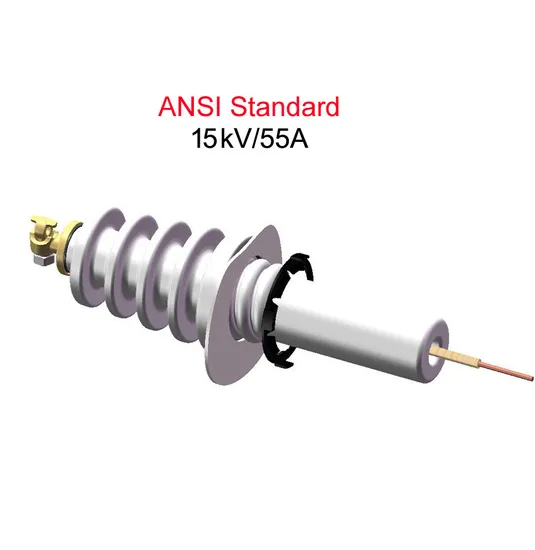

ANSI Standard 15-27kV 50A Transformer Porcelain Bushing Porcelain
The ThreaPorcelain insulators acc. To IEC, ANSI and customer standards are produced with cylindrical, conical or straight inner and outer appearance up to a maximum length of 2800mm in one piece. These insulator types are produced to withstand high mechanical forces such as inner pressure and cantilever.
1.Material: wet process porcelain insulator
2.Glaze color: light gray
3.Rated voltage: 15-27KV
4.Rated current: 50A
5.Standard: ANSI

Model	Dimension(mm)				Creep distance	Bushing fin number	Tank hole size(mm)	Weight(kg)
	H	H2	D1	H1
ANSI-15/50	485	184	101	157	310	5	71	2.8
ANSI-18/50	541	184	101	214	480	8	71	3.5
ANSI-27/50	722	235	107	344	830	12	71	5

Click here if you have any questions, we will give you the most satisfactory answer.
Our AdvantageSurface pickling (or tin plating), strong anti-oxidation abilityWhite color, bright shinning glossy
Surface processing, bright and smoothFlat and smooth surface, well polished Narrow tolerance, precise, size and dimension strictly according to drawing
Packing & Delivery
FAQ
1.Q:What's your main products?A: We provide professional Transformer Accessories and Insulation Materials with 15 years experience. 2.Q Why chooses us?A: Well experienced in our field. Our staff of engineers offers high-valued design guidance to
assure product performance and efficiency. And our strict adherence to rigorous quality control and tolerance standards lead to easier assembly of finished components at your facility. We always focus on Quality. 3. Q:How can you control your quality?A:For each production processing, we have complete QC system for the chemical composition, physical and electrical properties.After production, all the goods will be tested according to related standards, and the ex-factory test reports will be sent along with shipment documents. 4. Q: Does your company accept customization? A. Yes, we can accept OEM/ODM. 5.Q: Do you have the products instock?A: Depends on your request,we have standard models in stock.Some special product and big order will be newly produced according to your order. 6. Q: What's your payment terms? A: We usually accept all kinds of payment terms, T/T, L/C, Western union, Cash. 7. Q: What do you have for certificate? A: :Quality Service Credit Certificate, Enterprise Credit Grade Certificate,Credit Operation Demonstration Unit Certificate, Quality Management System Certificate, etc. 8.Q:Can we visit your company? A:Yes,for sure, you are welcome to visit our company.
Thank you for reading, click here to consult more product information.

---
