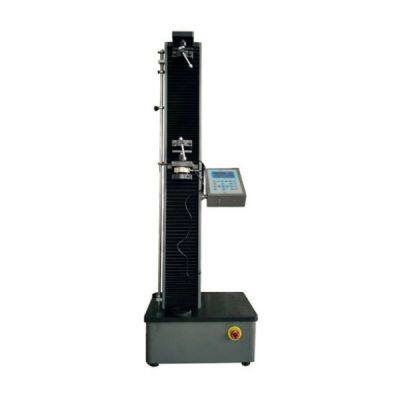

TCT-01 Tensile and Compression Tester
Application
The TCT-01 Tensile and compression Tester is a versatile and economic model that serves the mechanical property testing of various materials, such as flexible, rigid, composites, yarn, fabric, non-metallic materials etc.
TCT-01 is well-suited for conducting tension, compression, and bending tests, catering to the diverse requirements of material testing experts. It features a digital display that showcases the applied test force, offering the flexibility of adjusting the test speed to suit specific testing. Notably, the test specimen undergoes an automatic halt upon fracture, facilitated by the peak value holding function.
Employing an advanced automatic control and data acquisition system, TCT-01 ensures digital adjustment throughout the data acquisition and control process. Following the completion of the test, the machine halts automatically, streamlining the testing procedure for efficiency and accuracy. This enables precise measurement of critical technical parameters such as strength, elongation, and peak force, empowering material test experts with comprehensive insights into sample performance.
Technical Features
1. High precision digital speed regulating system and precision lead-screw
2. Easy sample loading
3. Dual test movement of tension and compression
3. Key operation and LCD real time display
4. Travel limit protection
Configuration
Main Machine, control Box(installed), tensile clamp 2pcs, Compression Plates 2pcs, tool kit 1pack, manual calibration certificate
Specification
Max Test Force 5000N(or others)
Force Accuracy Better than ±1%
Displacement Resolution 0.01mm
Displacement Accuracy Better than ±1%
Tensile Stroke 600/1000mm
Compression Stroke 600/1000mm
Speed Range 1~500mm/min
Overall Accuracy Better than grade 1
Tensile Clamp 50mm wide
Compression Plates φ100mm
Power 220V, 50 Hz
>>
