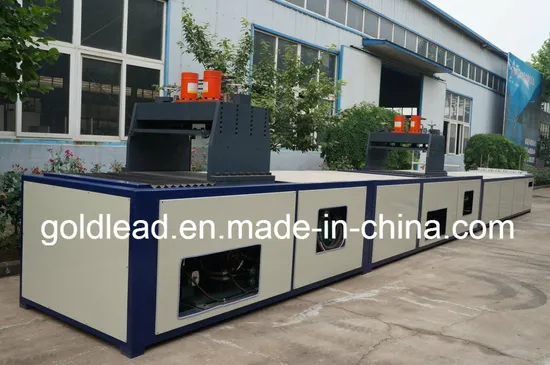

FRP BLG-1000X300 50T pultrusion machine
The machine includes: |
| Items | Description | Qty | Technical Data |
| 1 | Roving creels
| 8pcs | Ivory paint, combined structure, easy accessibility Rolls capacity: 70-100 5 layers Dimension: 2000mm(L)x700mm(W)x2000mm(H)
|
| 2 | Resin bath
| 1pc | Dimension: 1610mm(L)x1130mm(W)x2100mm(H) Stainless steel type
|
| 3 | Calibrating table
| 1pc | Size of die table:1200mm(L)x1490mm(W) Length of die: 900mm/1000mm Temperature control zones: 12 (optional 24 zones, max control power 4KW/zone, heating plated customer made) Dimension: 5600mm(L)x1600mm(W)x1600mm(H)
|
| 4 | Traction machine
| 1pc | Clamping envelope: 1000mm(W)x380mm(H) Max traction force: 500KN Max clamping force of traction heads: 500KN Traction speed: 0.05m-0.5m/min Max traction to-and-fro journey: 500mm Clamping journey: 100mm Traction cylinder: HSG Φ200X600 Clamping cylinder: HSG Φ140X80 Oil pump power: 380V 50HZ 5.5KWx2 Cooling water pump power: 220V/50HZ 2.2KW Dimension: 8600mm(L)x1600mm(W)x2200mm(H)
|
| 5 | Cutter
| 1pc | Cutting range: 1200mm(W)x400mm(H) Rotation speed of cutting blade: 1450rpm Cutting power: 2.2KW Hydraulic pump power: 2.2KW Cutting tracing journey: 500mm Cutting mode: auto/manual Cutting speed: frequency control Speed of saw strip feeding: hydraulic type stepless-speed frequency control Dimension: 3500mm(L)x3200mm(W)x2500mm(H)
|
| 6 | Creel for finished products | 1pc | Structure: square tube and steel plate welded Standard configuration: platform type with rollers Dimension: 6000mm(L)x550mm(W)x900mm(H) |
| Control system | PLC: Omron Temperature control module: Omron Touch screen: Omron 8" Solid state relay: Omron electrical non-touch heating control Electrical components: Chinese brand
|
| Hydraulic system | Oil pump: Yongjing, Shanghai Variable piston pump: V23 Stacked hydraulic change valve, pressure regulating valve: NORTHMAN, Taiwan, Precise speed regulating valve: DAKIN, Japan Each traction head has separate hydraulic system Oil temperature alarm and filter blocking alarm function |
