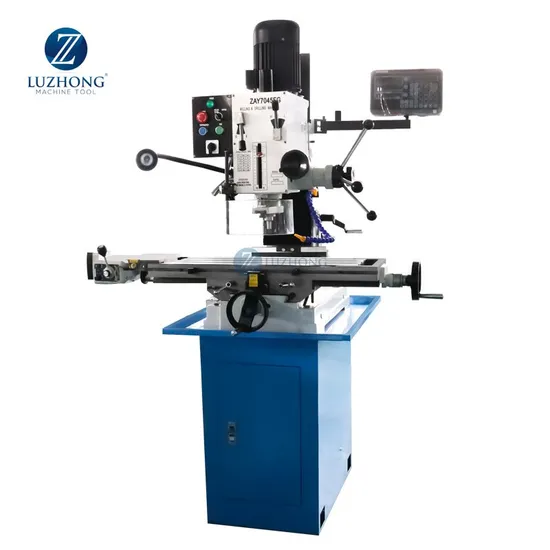

High Quality Metal ZAY7040FG Square Column Gear Drive Milling And Drilling Machine

Product Description

Luzhong cheaper high quality ZAY7040FG drilling and milling machine for sale
Product Description
Product Parameters

Specification	ZAY7040FG
Max drilling capacity	40mm
Max face milling capacity	80mm
Ma.End milling capacity	32mm
Max.distance from spindle nose to table	450mm
Min.distance from spindle axis to column	260mm
Spindle travel	130mm
Spindle taper	M.T.4 or R8
Step of spindle speed	6
Range of spindle speed 50Hz	80-1250 r.p.m
60Hz	95-1500 r.p.m
Swivel angle of headstock(perpendicularly)	90°
Table size	800×240mm
Forward and backward travel of table	175mm
Left and right travel of table	500mm
Motor Power	1.1KW(1.5HP)
Net weight/gross weight	323kg/373kg
Packing size	770×880×1160mm

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
