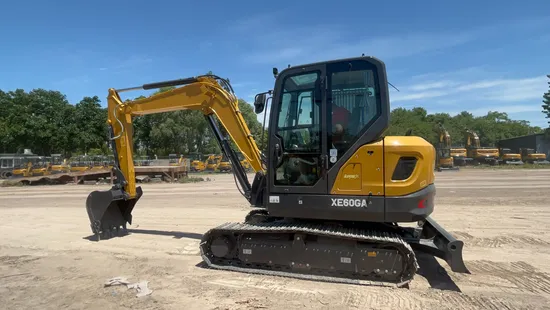

| Model | Unit | XE60GA | ||
| Operating weight | Kg | 6050 | ||
| Bucket capacity | m³ | 0.25 | ||
| Engine | Model | / | 4TNV94L | |
| Direct injection | / | √ | ||
| Four strokes | / | √ | ||
| Water cooled | / | √ | ||
| Turbocharged | / | / | ||
| Air to air intercooler | / | / | ||
| Number of cylinders | / | 4 | ||
| Rated power/speed | kw/rpm | 35.9/2000 | ||
| Maximum torque/speed | N.m | 200.8/1400 | ||
| Piston displacement | L | 3.054 | ||
| Main performance | Travel speed(H/L) | km/h | 4.2/2.4 | |
| Swing speed | r/min | 11 | ||
| Gradeability | ° | ≤35 | ||
| Ground pressure | kPa | 32.5 | ||
| Bucket digging force | kN | 48.3 | ||
| Arm digging force | kN | 32.5 | ||
| Maximum tractive force | kN | 50.5 | ||
| Boom offset(Left) | ° | / | ||
| Boom offset(Right) | ° | / | ||
| Oil Capacity | Fuel tank capacity | L | 110 | |
| Hydraulic tank capacity | L | 85 | ||
| Engine oil capacity | L | 12 | ||
| Working scope | A | Max. Digging height | mm | 5630 |
| B | Max. Dumping height | mm | 3945 | |
| C | Max. Digging depth | mm | 3830 | |
| E | Max. Directly digging depth | mm | 2680 | |
| F | Max. Digging radius | mm | 6130 | |
| G | Min. Tuning radius | mm | 2460 | |
| H | Max. Blade lift height | mm | 390 | |
| I | Max. Blade cutting depth | mm | 560 | |
| Equipment | Standard | Boom length | mm | 3000 |
| Stick length | mm | 1600 | ||
| Bucket capacity | m³ | 0.25 | ||
| Optional | Boom length | m³ | / | |
| Stick length | m³ | / | ||
| Bucket capacity | m³ | / | ||
