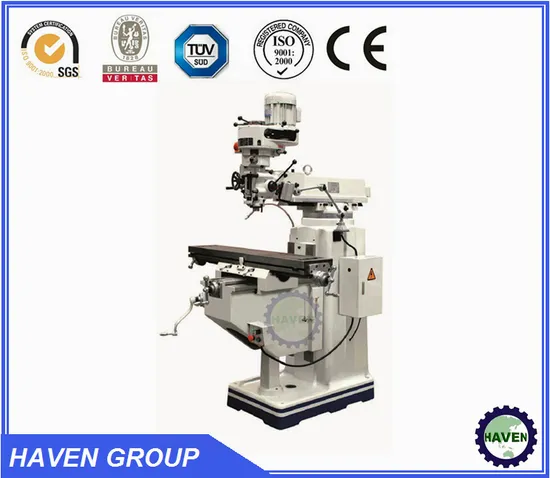

Universal Turret Milling Machine X6325

US$10,000.00-20,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

X6325

Milling Cutter Type

Angle Milling Cutter

Milling Cutter Structure

Indexable Type

Controlling Mode

CNC

Automatic Grade

Automatic

Precision

High Precision

Certification

GS, CE, ISO 9001

Condition

New

Turret Milling Machine

The Milling Head Can Be Rotary

Transport Package

Wooden Pallet

Specification

X6325

Trademark

HAVEN

Origin

China

HS Code

8459699000

Production Capacity

100units/Month

Product Description

Universal Turret Milling Machine X6325
Main Character:
Rrectangular guide way on Y-axis and 55° Swallow tail guide way on Z-axis, that will make the machine stably and easy to adjust. The guide way on saddle is lined with TF wearable material.

Main specification:

MODEL

X6323

X6323B

X6325

X6325A

X6325B

X6325C

X6325D

XU6325

X6330

X6330A

X6333

Working table

230*1067(9" *42" )
230*1246(9" *49" )

254*1270(10" *50" )
254*1370(10" *54" )

250*1270
(10" *50" )

305*1270
(12" *50" )

330*1370
(13" *54" )

Longitudinal travel

660(26" ) 838(33" )

810(32" ) 914(36" )

770(30 3/8" )

890(35" )

1000(39 3/8" )

Cross travel

335(13 1/4" )

420(16 1/2" )

390(15 3/8" )

400(15 3/4" )

420(16 1/2" )

380(15" )

Vertical travel

350(13 3/4" )

400(15 3/4" )

360(14 1/8" )

460(18 1/8" )

Spindle hole taper

R8 ISO30 ; ISO40

ISO40

R8 ISO30 or ISO40

ISO40

Spindle travel

127(5" )

150(6" )

Power dial feed

0.04(0.0016" ) 0.08(0.0032" ) 0.13(0.0053" )

Spindle speed

shift without grade

60-4200

70-3600

60-4200

70-3600

shift by grade

16steps 80-5440

8-16steps 70-3600

16steps 80-5440

8-16steps 70-3600

Spindle motor

2.25KW/3HP

3.75KW/5HP

2.25KW/3HP

3.75KW/5HP
