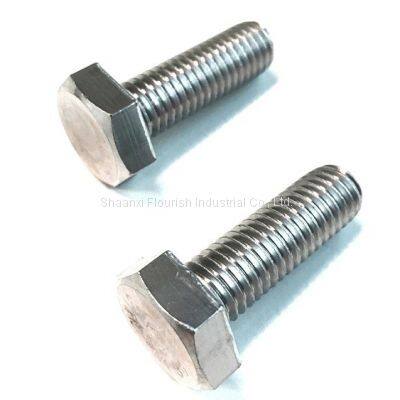

ISO4017 304 Stainless Steel Hex Head Bolt Heavy Full Thread

Product Details

Product Description

Product Description
Product Name:Standard:Head Type:Thread:Material:Process:High Light:

Hex. Bolt	ISO 4017
Hex.	Full Thread
SS304	Cold Pier
Stainless Steel Full Thread Hex Bolts, Full Thread Heavy Hex Bolt, Stainless Hex Head Bolts 304

ISO4017 Stainless Steel Hex Head Bolt / SS304 Heavy Hex Head Bolt / Full Thread Stainless Hex Bolts
1. Standard: ISO 4017
2. Head type: Hex Head
3. Size: M1.6-M64
4. Length: 1.2mm-500mm
5. Material: Stainless Steel SS304
6. Finish: Passivated
7. Delivery time: Normally in 5-20 days
8. Package: Cartons&pallets or according to customer's requirement

Mon	M1.6	M2	M2.5	M3	M3.5	M4	M5	M6	M8
p	0.35	0.4	0.45	0.5	0.6	0.7	0.8	1	1.25
da max	2	2.6	3.1	3.6	4.1	4.7	5.7	6.8	9.2
e min	3.41	4.32	5.45	6.01	6.58	7.66	8.79	11.05	14.38
k max	1.225	1.525	1.825	2.125	2.525	2.925	3.65	4.15	5.45
k min	0.975	1.275	1.575	1.875	2.275	2.675	3.35	3.85	5.15
r min	0.1	0.1	0.1	0.1	0.1	0.2	0.2	0.25	4
max	3.2	4	5	5.5	6	7	8	10	13
s min	3.02	3.82	4.82	5.32	5.82	6.78	7.78	9.78	12.73
Mon	M10	M12	M14	M16	M18	M20	M22	M24	M27
p	1.5	1.75	2	2	2.5	2.5	2.5	3	3
da max	11.2	13.7	15.7	17.7	20.2	22.4	24.4	26.4	30.4
e min	17.77	20.03	23.36	26.75	30.14	33.53	37.72	39.98	45.2
k max	6.58	7.58	8.98	10.18	11.715	12.715	14.215	15.215	17.35
k min	6.22	7.32	8.62	9.82	11.285	12.285	13.785	14.785	16.65
r min	0.4	0.6	0.6	0.6	0.6	0.8	0.8	0.8	1
max	16	18	21	24	27	30	34	36	41
s min	15.73	17.73	20.67	23.67	26.67	29.67	33.38	35.38	40

---
