Drywall Chipboard Self Tapping Screw Making Machine

Product Description

Drywall Chipboard Self tapping Screw Making Machine Thread Rolling Machine
Cold Heading Machine Product Description
If want to make high quality screw, need below process (welcome to contact us for more details):

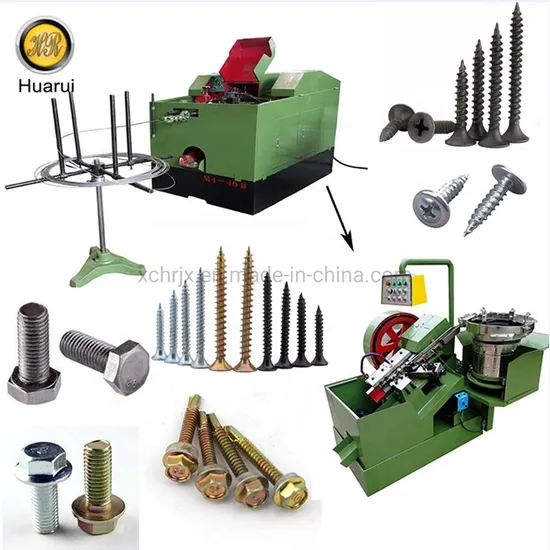

Wire reel--Screw heading machine--Screw thread rolling machine--Finished screws
screw quenching furnace and screw tempering furnace: heat treatment to harden screws
electric galvanizing equipment: make screws zinc or copper plated
Product Parameters
1. M series Automatic screw heading machine (cold heading machine)
This equipment adopts cold heading way to make the wire rod upsetting by double-click the whole mould form.
Finished Feeding, straightening, cutting material, forming, discharging by one machine.
Main technical parameters:

Model	Max. Screw Dia. (mm)	Max. Screw length (mm)	Capacity (pcs/min)	Motor (kw)	Weight(Ton)	Overall size (m)
ZM3-18A/B	3	18	160-180	0.75/0.37	0.6	1.3*0.75*0.9
ZM3-28A/B	3	28	160-180	0.75/0.37	0.6	1.3*0.75*0.9
ZM4-28B	4	28	120-160	1.5/0.37	0.97	1.5*0.9*0.9
ZM4-28D	4.5	28	180-200	1.5/0.37	1.2	1.6*1*1.2
ZM4-40B	4	40	120-150	1.5/0.37	0.97	1.6*1*1.2
ZM4-40D	4.5	40	180-200	1.5/0.37	1.2	1.6*1.1*1.1
ZM5-40B	6	40	120-150	2.2/0.37	1.8	1.8*1.1*1.1
ZM5-60B	6	60	110-140	2.2/0.37	1.8	1.8*1.1*1.1
ZM5-80B	6	80	80-100	2.2/0.37	1.9	2*1.1*1.2
ZM5-100B	6	100	60-80	3/0.18	2.1	2.4*1.2*1.2
ZM5-120B	6	120	50-70	3.6/0.37	2.3	2.8*1.3*1.3
ZM6-60B	8	60	80-110	4/0.37	2.8	2.3*1.3*1.3
ZM6-100B	8	100	60-90	4/0.37	2.7	2.3*1.3*1.3
ZM6-120B	8	120	60-70	4/0.37	3	2.4*1.3*1.4
ZM6-170B	8	170	40-70	4/0.37	3.7	3*1.3*1.5
ZM6-200B	8	200	40-55	4/0.37	3.7	3*1.3*1.5
ZM8-120B	10	120	50-90	5.5/0.37	4.6	3.4*1.5*1.5
ZM8-130B	10	130	50-90	5.5/0.37	4.6	3.4*1.51.5
ZM8-130C	10	130	50-90	5.5/0.37	4.6	3.4*1.51.5
ZM8-150C	10	150	40-50	5.5/0.37	5	3.5*1.7*1.7
ZM8-200B	10	200	25-60	7.5/0.37	6	3.8*1.6*1.7
ZM10-120B	12	120	40-70	11/0.75	7	3.3*1.71.7
ZM10-170C	12	170	40-60	11/0.75	7.5	4.2*1.81.7
ZM10-220C	12	220	35-60	11/0.75	7.5	4.2*1.81.7
ZM10-250C	12	250	30-45	11/0.75	8.5	5*1.8*1.7
ZM10-300C	12	300	25-35	15/0.75	9	5*1.9*2.1
ZM10-360C	12	360	20-30	15/0.75	12	6.7*2*2.6
ZM12-150C	14	150	40-50	15/0.75	10	3.9*1.9*1.8
ZM12-250C	14	250	35-50	15/0.75	11	5.3*2.2*1.9
ZM14-150C	16	150	40-50	11/0.75	10	4.5*2.2*2.15
ZM14-250C	16	250	35-45	15/0.75	11	5*2.2*2.15

2. Full automatic thread rolling machine
This equipment adopts two thread profile thread rolling plate staggered 1/2 screw distance design, dead plate is fixed,
movable plate equal to dead plate do straight line motion back and forth, when the work piece feed between two plates,
movable plate move forward twist work piece, make its surface plastic deformation into thread.
Main technical parameters:

Model	Max. Screw Dia (mm)	Max. Screw length (mm)	Motor (kw)	Capacity (pcs/min)	Weight (Ton)	Overall size (m)
HR3-20A	M2.6	20	1.1	350	0.3	1.1*0.53*1.2
HR3-20B	M2.6	20	1.1	350	0.3	1.1*0.53*1.2
HR4-25A	M4	25	1.5	320	0.45	1.3*0.63*1.32
HR4-25B	M4	25	1.5	320	0.45	1.3*0.63*1.32
HR4-40A	M4	40	2.2/0.37	280	0.97	1.5*1.15*1.35
HR4-40B	M4	40	2.2/0.37	280	0.97	1.5*1.15*1.35
HR5-55B	M5	55	3+0.37	160	1.2	1.6*1.35*1.7
HR5-65A	M5	65	3+0.37	130	1.3	1.75*1.4*1.65
HR5-65B	M5	65	3+0.37	130	1.3	1.75*1.4*1.65
HR6-60A	M6	60	4/0.37	180	1.5	1.7*1.65*1.3
HR6-60B	M6	60	4/0.37	180	1.5	1.7*1.65*1.3
HR6-100B	M6	100	5.5+0.37	110	1.9	2.7*1.3*1.3
HR8-80B	M8	80	5.5/0.37	110	1.8	2.1*1.55*1.3
HR8-100B	M8	100	7.5+0.37	100	2.1	2.7*1.7*1.3
HR8-120B	M8	120	5.5	100	2.1	2.4*1.8*1.4
HR10-120B	M10	120	7.5	80	1.8	2.35*1.95*1.4
HR12-120B	M12	120	11	60	3	2.45*2*1.45
HR12-160B	M12	160	13	60	3	2.45*2*1.45
HR12-220B	M12	220	15	50	3.5	2.5*2*1.45
HR16-120B	M16	120	15	50	3.8	2.5*2.1*1.45
HR16-160B	M16	160	15	50	4	2.5*2.1*1.45
HR16-220B	M16	220	15	45	4.8	3.7*1.9*1.7

Finished products display
We can also customize machine according to your screws. Please send pictures of screws you want to make and
tell screw diameter and length you want to make. Then we can recommend most suitable machine accordingly.
Packaging & Shipping
Our screw bolt making machines have been exported to many countries:
Our customers
After Sales Service

1. The warranty time of all our products is two years.
2. Before sending the machines, they will be tested and adjusted, so you can use machines directly when you get it.
Operation video & instruction will also be sent to clients.
3. Professional advice will be offered when you meet some problems when using our products.
4. All kinds of frequently used parts are supplied all the year round.
5. 24 hours on line service.
Certifications
Related product
Our company has been specialized in screw making machines, rivet making machines, bolt making machines for over 30 years. If any interest in our machines, welcome to contact us any time.

---
