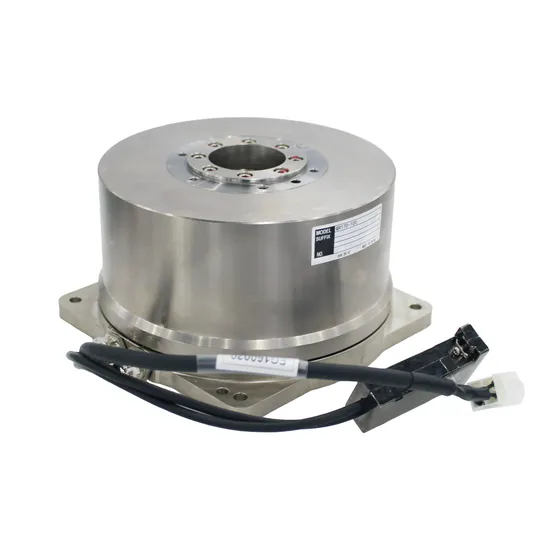

Handrive Low Speed High Torque Psms Direct Drive Rotary Brushless Motor for Sorting Machine

Product Description

Product DescriptionHanDrive DD motor has two types of structure: inner rotor and outer rotor to meet more application requirements.
Diameter from 40mm to 760mm, continuous torque from 0.8N.m to 5000N.m. There are more than a dozen sizes to choose from, absolute accuracy can reach to ± 6arc-sec, repeated positioning up to ± 1arc-sec.Has high precision, high rigidity, low axial radial runout and other advantages.
And handrive motor's integration structure, the motor directly drives the load which eliminates the use of a transmission or a gearbox.The amount of moving parts in the system is reduced tremendously increasing the efficiency and creating a quiet and high dynamic operation. Therefore, direct drive technology achieves a very high lifetime. Our motors are characterized by high dynamic performance and high efficiency.
Product Parameters

Specification	QR170-100
Peak Torque	N.m	45
Continuous Torque	N. m	17
Max. Speed	rps	4
Rated Speed	rps	2
Line Resistance	Ohm	6.2
Line Inductance	mH	18
Torque Constant	Nm/Arms	6.7
Back-EMF Constant	Vp/(krpm)	572
Continuous Current	Arms	2.8
Peak Current	Arms	8
Pole Pairs	P	10
Encoder Resolution	pulse/rev	1536000
Absolute Accuracy	arc-sec	±26/±10
Repeatability	arc-sec	±1.2
Numbers of Origin Pulse	pulse/rev	1
Max. Power	KVA	1
Rated Power	KVA	0.3
Rotor inertial	kgcm²	179
Max.Moment load
Axial Load Positive	N	4200
Axial Load Negative	N	2200
Radial Load	Nm	100
Mechanical Accuracy of Load Mounting	Um	15,8 or less
Weight	Kg	11.6

Packaging & ShippingDifferent models according to the weight and size of the cardboard box and wooden box two kinds of packaging
Company ProfileHandrive is professional manufacturer of direct drive motor,including rotary and Linear motor.*Plant area :56000 square meters*Set up dust-free workshop and independent laboratory*Equipped with nearly 100 sets of advanced production equipment and testing instruments*Rich industry application cases*Direct drive motor product line complete
Handrive products include DD Motor,Linear Motor and Module, Voice Coil Motor, Double Drive Gantry Platform/Module, and other series. Products are widely used in micro precision laser processing equipment, precision measuring instruments, LED equipment, electronic semiconductor equipment,3C equipment, testing equipment, new energy battery equipment, medical equipment,and scientific research equipment, and other intelligent equipment.
Our Advantages
Product Applications
FAQ
Q1: Are you manufacturer?A1: Yes,Jiangxi Han Drive Intelligence Technology Co.,Ltd.Our factory covers an area of 56000m, with dust-free workshop and independent laboratory, complete production system and testing system of direct drive technology. Q2: What's the shipping/freight cost?A2: It depends on the quantities and shipping methods. Q3: What is the delivery time?A3: It takes about 10-15 working days for sample order and 20-25 working days for quantity within 100pcs. Please check with us when you place an order. Q4: What is the material of your motor?A4: Most is steel,some is aluminum. Q5: What's the weight does the motor bear?A5: It depends on,different model can bear different weight.

---
