Emulsifier Homogenizer and Mixer for Skin Care Product

Product Description

General Introduction
Industrial Inline High Shear Mixer Disperser Homogenizer Emulsifyer Mulser

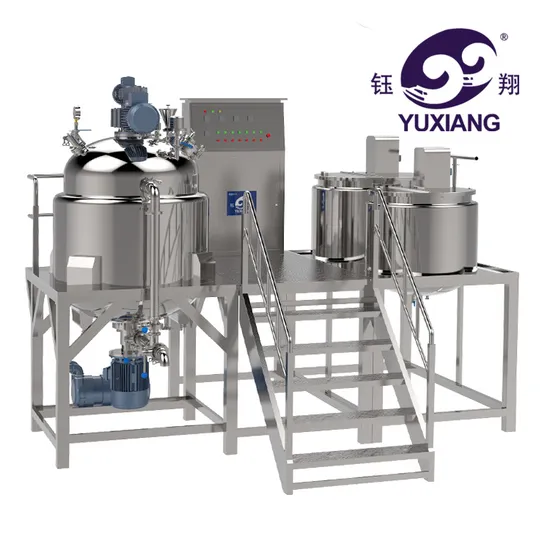

This machine is vacuum emulsifying mixer.It is a processing equipment with mixing, homogenizing, emulsifying,heating fuction, etc.The machine is widely used to produce cosmetic cream,lotion,as well as food cream,paste ,etc.It is the first choice of cosmetic factory which manufacture high quality products. The machine adopts the component of international famous brands, which ensure durable quality and operational stability of the machine. According to the feedback from our customers, this design style provides great satisfaction performance to them.This device is mainly composed of Water phase pot, Oil phase pot, Emulsifying pot, Vacuum system, Lifting system(optional), Electric control system, Operation platform etc.


Vacuum Emulsifying Mixer Features
SIEMENS frequency converter for speed adjustment, which can meet production of different technology requirement. The vacuum defoaming can make the materials meet the requirement of being aseptic.The vacuum material sucking adopted can avoid dust,especially for the powder products. import mechanical sealing, good sealing effect and long working life. The tank body and the pipes adopt mirror polishing, which fully conforms to GMP standards. Material contact parts all use SUS316L stainless steel. The heating method mainly include electric or steam heating for customer's choice. Advanced PLC touch screen control is optional. The emulsifying pot lid can adopt hydraulic lifting system, easy to clean and the cleaning effect is more obvious, the emulsifying pot can adopt tilt discharge.

Advantage
It's used for produce the cream, lotion, paste, ointment, paste, conditioner, etc. Complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect;
Polytetrafluroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall;
Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During few production, it can exert homogenizing effect fully;
Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high-capability cut,rubbing,centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing 300EMSH (sanitation grade) accords with Daily Chemical and GMP regulation.
Customer can choose frequency conversion timing homogenizer and highest rotate speed is 4500 r/min.

Name	Frame-wall scrapping oar	Homogenizer	heating for main pot	heating for oil pot	heating for water pot	disperser of oil pot	disperser of water pot	vacuum Pump	hydraulic lifting
50L	1.1kw	2.2kw	3	3	6	0.37	0.37	0.75 kw	0.55
100L	1.5kw	3--4kw	6	6	6	0.55	0.55	1.5kw	0.75
200L	3kw	5.5kw	9	9	12	0.75	0.75	1.5kw	0.75-1.1
300L	3--4kw	5.5kw	9	12	12	1.1	1.1	2.2kw	1.5
500L	4kw	7.5kw	12	18	18	1.5	1.5	2.2kw	1.5
800L/1000L	5.5kw	11kw	18	18	27	1.5	2.2	4kw	2.2
2000L	7.5kw	15kw	27	27	36	2.2	2.2	4kw	2.2
3000L	15KW	22KW	27	27	36	3	3	7.5	2.2

Founded in 2000, with 5 production lines and covering an area of 12,000 square meters, our factory has developed into a professional manufacturer of cosmetics machinery and equipment, by integrating R&D, manafacturing, sales and service. Advanced production equipments are the guarantee for high quality products.
Our product catagories mainly include: Vacuum emulsifying mixer, Liquid washing mixer, Water treatment equipment, Perfume machine, Filling machine, Packing machine, Labeling machine etc. We are able to supply a wide range of high quality products for your One-stop sourcing in our exhibition center.
When we make delivery ,the products will be packed in wooden case to avoid of destroy.
A quality department has been set up to control the product quality during every process of production. For years, we are strictly implementing International Quality Management System ISO 9001.

---
