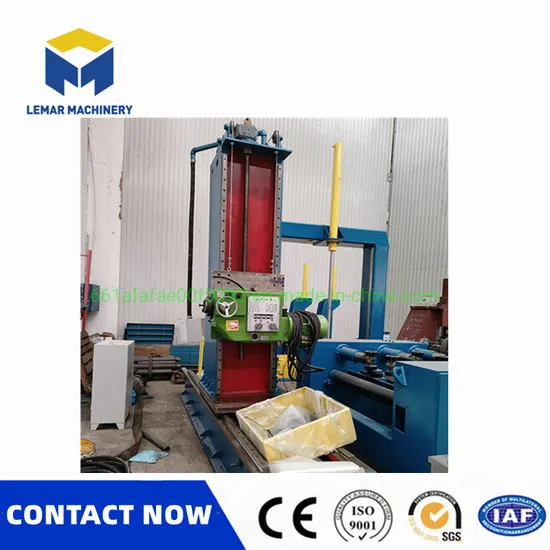

3000*1500mm Box Beam Steel Beam CNC Plane End Face Milling Machine

Product Description

3000*1500mm Box beam Steel beam CNC plane end face milling machine CNC plane face milling machines are mainly used for roughing or finishing the surface of box beams.
The cutting and milling surface has high precision and low noise, and the stepless speed change can be implemented after installing the frequency conversion device.
This end face milling machine tool is widely used in various departments of mechanical processing, and can be used for milling, drilling, reaming, boring, reaming, countersinking and other processing of mechanical parts.
Structural features of CNC H beam Box beam gantry milling machine: Fixed bed and table move;
The headstock moves up and down with the slide;
It can move left and right along the beam to realize three-axis linkage;
Configure the main boring and milling head. The main milling head of the machine tool has the functions of milling, boring, drilling,
countersinking, etc.
It is suitable for the processing of large and medium-sized parts in machinery, steel, energy, automobile, aerospace, weapons, ships and other industries.
Technical Details:

Type	DX1215	DX2025	DX3015
Box beam Working range(mm)	1200*1500	2000*2500	3000*1500
Feeding speed(mm/min)	50-440	50-440	55*550
Quick backward speed(mm/min)	660	660	600
Power of main motor(kw)	5.5kw	5.5kw	11.5kw
The regulation of angle of power head in vertical surface	0-45°	0-45°	0-45°

Edge milling machine cutting amount reference:

Diameter of cutter head D(mm)	Number of teeth for standard face mills z	Recommended stock removal per tooth m(mm)	Recommended cutter head speed(rpm.)	Appropriate cutting speed v(mm/min.)	Set the cutting face width A(mm)	Cutting depth with 3KW power head h(mm)	Cutting depth with 5.5KW power head h(mm)	Cutting depth with 7.5KW power head h(mm)
160	9	0.18	400	650	15	3	6	8.5
					20	2.2	4.3	6
					30	1.35	2.7	3.7
					40	0.97	1.9	2.7
					50	0.74	1.5	2.1
200	12	0.16	320	610	15	3.3	6.5	9.1
					20	2.3	4.6	6.5
					30	1.45	2.9	4
					40	1.03	2	2.9
					50	0.8	1.6	2.2

---
