US$5,200.00-5,700.00
|
1 Piece
(MOQ)
|
Basic Info.
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Automatic Grade
Automatic
Application
Metal and More
Process Usage
Metal-Cutting, Non-Conventional Cutting
Movement Method
Contour Contorl
Control Method
Semi-Closed-Loop Control
Performance Classification
Economical CNC Machine Tools
Processing Precision
<=0.01
Installable Accessories
Chat with Supplier
Transport Package
Wooden Box
Specification
1800*1600*1800mm
Production Capacity
2000 Pieces/Year
Packaging & Delivery
Package Size
200.00cm * 180.00cm * 200.00cm
Package Gross Weight
1250.000kg
Product Description
Product Description

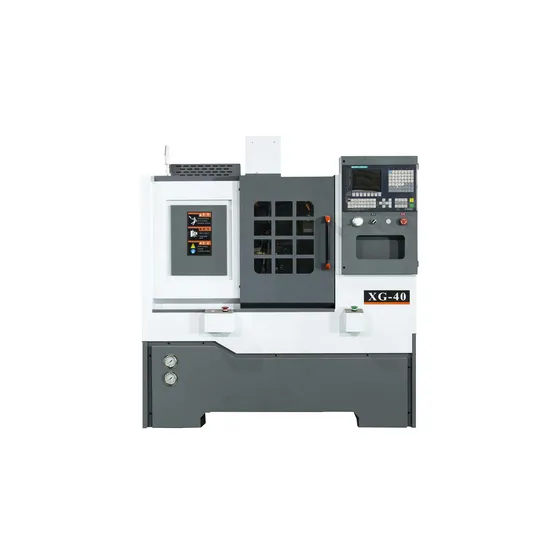

Detailed Photos
| No | name | quantity | Manufacturer | Remark |
| 1 | CNC system | 1 set | GSK | 928TA2 |
| 2 | Spindle motor | 1 set | Lilong Motor | 4KW |
| 3 | Servo drive | 1 set each | Keyuan original accessories | X axis 4 N holding brake
Z axis 4 N |
| 4 | Spindle front bearing | Group 1 | Renben | 7215DBB |
| 5 | Spindle rear bearing | Group 1 | Renben | 7213DBB |
| 6 | X , Z axis screw bearings | 1 group each | Luoyang Bearing | 720604 flange |
| 7 | X , Z axis ball screw | 1 group each | Taiwan SHAC | X axis 2510*710
Z axis 3210*620 |
| 8 | X- axis linear guide | 2 pieces | Taiwan SHAC | Ball 30*640 |
| 9 | Z- axis linear guide | 2 pieces | Taiwan SHAC | Ball 30*640 |
| 10 | Spindle | 1 set | Xin Shiheng | A2-5 |
| 11 | Tools holder | 3 | | 45 |
| 12 | Cutting fluid pump | 1 | Ze Gong | 40W |
| 13 | Automatic lubrication system | 1 | Yuhuan Hejin | gear pump |
| 14 | X , Z axis coupling | Each 1 | Jiangsu | 17-19 |
| 15 | Pneumatic/hydraulic (optional) | 1 | Dingchang | Hollow 1246 |
| 16 | Spindle frequency converter | 1 | Xin Shiheng | 4KW |
Processing capacity capacity | | |
| Maximum turning diameter over the bed | mm | 300 |
| Standard processing diameter | mm | 40 |
| Maximum processing diameter | mm | 160 |
| Maximum processing length | mm | 150 |
| Bar processing diameter | mm | 40 |
| Movement amount | X-axis travel | mm | 700 |
| Z axis travel | mm | 420 |
Spindle | Spindle Speed | RPM | Within 3000 |
| Minimum indexing angle (Cs axis control) | deg | - |
| Spindle nose (nominal name) | A2-5 |
| Through hole diameter | mm | 48/56 |
| Bearing Type | 7215/7213 |
Knife holder | Tool holder form | Direct installation |
| Number of tool clamping | pcs | 4 |
| Rectangular knife handle height | mm | 20 |
| Boring bar shank diameter | mm | 20 |
tailstock | Tailstock movement amount | mm | none |
| Tailstock sleeve diameter | mm | none |
| Tailstock sleeve taper hole taper | none |
| Tailstock sleeve movement amount | mm | none |
| Feed rate | Rapid feed rate | m/min | X:12/ Z:20 |
motor | Spindle motor | kW | 4 |
| Power head motor) | kW | none |
| Feed axis motor | NM | X: 4/Z: 4 |
| Hydraulic pump motor | kW | 0.75 |
| Cutting fluid pump motor | kW | 0.4 |
| Required power supply | power supply | kVA | 7.5 |
Fuel tank capacity | for hydraulic devices | L | 40 |
| for lubricants | L | 2 |
| for cutting fluids | L | 60 |
Machine tool volume | Machine height | mm | 1600 |
| Height from the ground to the centerline of the spindle | mm | 100 |
| Floor space (standard specification) x3 | mm x mm | 1 6 0 0 x 1400 |
| Machine weight | kg | 1100 |
Company Profile
Customer Reviews
Certifications
Exhibitions
Packaging & Shipping
FAQ
1.What is the payment Terms?
A:30% initial payment when order,70% balance payment before shipment;lrrevocable LC at sight.When we receive theadvance payment,we will start to make production.when the machine is ready,we will take pictures to you.after we gotyour balance payment we will send the machine to you.
2. What is your trade terms? A:FOBCFRand CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machinewe can ready the machine within 15days. if some special ma- chines will be some longer.You can place order accordingto delivery time and ship timewe willgive you the answer accordingly.
4. What is your trade terms?
A:FOB,CFRCIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MoQ is one set, lathe warranty is one year and system warranty is three vear
6. What is the package of the machines?
A:The machines standard will be packed in wood case.
(how to guarantee the precision)
In order to guarantee the high precision, we use integrate bed, and imported accessories, such as ball screw rod,
Linear guide rail, automatic lubrication system, during the effective machining range, our machine can guarantee the error 0.01mm.
>>
