P1.25 /P1.538/P2 /P2.5 Indoor HD LED Display in Meeting Room

Product Description

HA Series - HD LED Display HK series cabinet size is 640 * 480, which supports front maintenance, key features support power backup and system backup. It support front maintenance, fixed installation and ceiling installation. About the compatibility, It's compatible with P1.25 P1.53 P1.66 P1.86 P2 and P2.5 pixel pitch.
HA Series - HD LED DisplaHK series cabinet size isthe 640 * 480, which supports front
THE
TH maintenance, kTHEey features support power backup a Cabinet Specs First class design for die casting cabinet frame, each cabinet (include all components) is only 7.5 kg , four sets strong fast lock to make assembling to be easier.
nd system backup. It support front maintenance, fixed installation and ceiling installation. About the c Various installation mode Thinner & lighter high-precision cabinets feature interlocks to facilitate fast installation like direct wall mounting,hanging & stacking.

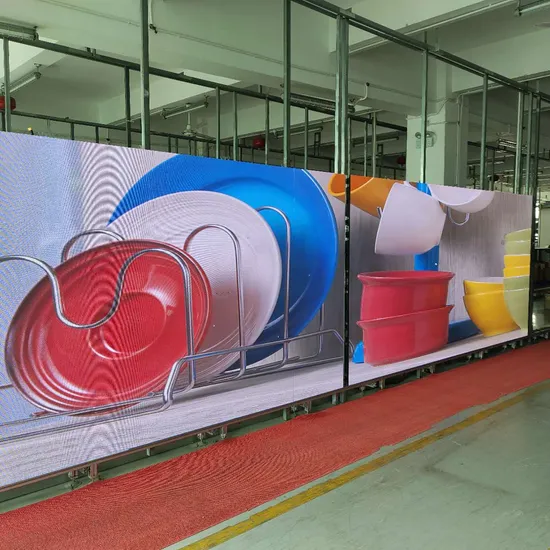

The factory aging and testing view for the HD indoor led display
Back view for the aging screen
The HD MOUDLE PACKING
Specifications

Model	P1.25	P1.538	P1.86	P2	P2.5	P3	P4
Pixel Pitch(mm)	1.25	1.538	1.86	2	2.5	3	4
Pixel Matrix Per Sq.m	640000dots	422754dots	289051dots	250,000dots	160,000dots	111,111dots	62,500dots
LEDs Package	SMD1010	SMD1212	SMD1415	SMD1415	SMD1415	SMD1921	SMD1921
Brightness (cd/)	≥1,200 cd/	≥1,200 cd/	≥1,200 cd/	≥1,200 cd/	≥1,200 cd/	≥1,200 cd/	≥1,200 cd/
Scan	1/64	1/52	1/43	1/40	1/32	1/26	1/20
Module Dimension	320*160mm	320*160mm	320*160mm	320*160mm	320*160mm	320*160mm	320*160mm
Cabinet Dimension	640*480*75mm	640*480*75mm	640*480*75mm	640*480*75mm	640*480*75mm	640*480*75mm	640*480*75mm
Cabinet Resolution	512*384dots	416*312dots	344*258dots	320*240dots	256*192dots	208*156dots	160*120dots
Cabinet Material	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum
Cabinet Weight	7.6KGs	7.6KGs	7.6KGs	7.6KGs	7.6KGs	7.6KGs	7.6KGs
Max. Power Consumption	800W	800W	800W	800W	800W	800W	800W
Ave. Power Consumption	200-300W	200-300W	200-300W	200-300W	200-300W	200-300W	200-300W
Service Access	Front	Front	Front	Front	Front	Front	Front
Refresh Rate (HZ)	≥1,920HZ	≥1,920HZ	≥1,920HZ	≥1,920HZ	≥1,920HZ	≥1,920HZ	≥1,920HZ
Grey Scale (bit)	16	16	16	16	16	16	16
Viewing Angle (H/V)	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°
Best Viewing Distance	1.2-12meters	1.5-15meters	1.8-18meters	2-20 meters	2.5-25 meters	3-30 meters	4-40 meters
IP Rate	IP31	IP31	IP31	IP31	IP31	IP31	IP31
Input Voltage (AC)	110V-240V,50/60HZ	110V-240V,50/60HZ	110V-240V,50/60HZ	110V-240V,50/60HZ	110V-240V,50/60HZ	110V-240V,50/60HZ	110V-240V,50/60HZ

Application With high resolution LED Video Screen rentals for all sorts of events, nightclubs, weddings, concert, church etc.
ompatibility, It's compatible with P1.25 P1.53 P1.66 P1.86 P2 and P2.5 pixel pitch.

---
