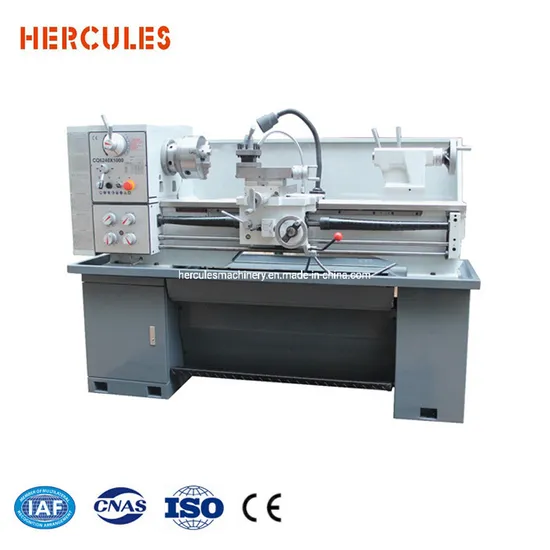

| Specification | C0636D |
| Max. Swing over bed | Φ360mm |
| Max. Swing over cross slide | Φ224mm |
| Max. Swing over gap | Φ502mm |
| Distance between centers | 1000mm |
| Width of bed | 180mm |
| Spindle nose | Φ52mm |
| Taper of spindle bore | D1-5 |
| Range of spindle speeds | 70-2000RPM |
| Metric threads range | 0.4-7mm |
| Inch threads range | 4-56T.P.I |
| Range of longitudinal feeds | 0.052-0.392mm/rev |
| Range of cross feeds | 0.014-0.380mm/rev |
| Max. travel of cross side | 170mm |
| Max. travel of top side | 95mm |
| Max. travel of tailstock quill | 100mm |
| Taper of tailstock | M.T.#4 |
| Motor power | 1.5kW |
| Hercules Machinery Equipment Ltd. |
1. Three Jaw Chuck
2. Four Jaw Chuck
3. Face Plates
4. Steady Rest
5. Follow Rest
7. working light
8. Operation Manual
9. Foot brake system
10. Dead center
1. 2-AXIS DRO 3-AXIS DRO
2. CE electrical components+leadscrew cover+chuck cover
3. Quick change tool post
4. Live center MT4#
5. Tool post cover
