Advanced Horizontal Milling Machine for Efficient Metal Drilling Solutions

Product Description

Product Description

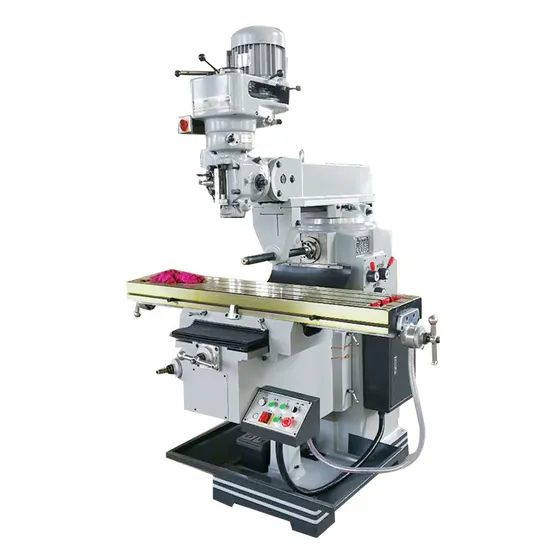

Vertical and Horizontal Turret Milling Machine Fresadora 4HW 5HW Metal Universal Milling Machine
1. Our Turret Milling Machine boasts an intelligently designed construction that offers outstanding machining capabilities. Whether you're drilling, boring, or milling planes and inclined surfaces, this versatile machine handles it all. By using the appropriate attachments, you can also tackle complex tasks like milling helix slots, round surfaces, racks, gears, and splines.2. The Y-axis features a robust rectangular guideway, ensuring optimal rigidity and stability. The saddle's guideway on the Radial Milling Machine is enhanced with TF wearable material, providing durability and smooth operation.3. Experience the cutting-edge performance of a high-speed milling head sourced directly from Taiwan, ensuring precision and efficiency in every task.4. Our machine's slide ways and table surfaces are meticulously hardened, offering unparalleled durability and precision for all your milling needs.5. With T-slots machined by specialized tools, the slots remain within the table's edges, enhancing rigidity and presenting an aesthetically pleasing finish. 6. The slide ways are expertly hand-scraped for precision, ensuring consistent accuracy and a smooth, fluid motion.7. XYZ axis screws are manufactured in Taiwan, guaranteeing top-notch quality and precision for dependable performance.8. The XY screws, equipped with dual nuts, allow for easy adjustment of space between the screw and nut, ensuring smooth and precise operation.9. The XY screw bracket is innovatively designed as a single base unit, providing excellent precision and rigidity in every use.10. Our electro systems are engineered to meet stringent CE standards, ensuring safety and reliability in operation.
Detailed Photos

Specifications	Units	4HW	5HW
Table size	mm	1270x254	1370x305
Table travel	mm	780/420/400	810/420/400
T slot(number-width-pitch)	mm	3-16-65	3-16-65
Spindle taper		(V) R8/ISO40 (H) ISO40	(V) R8/ISO40 (H) ISO40
Spindle speed range	rpm	(V)50HZ:65-4500 60HZ:80-5440,16 steps; (H)45-1350,12 steps	(V)50HZ:65-4500 60HZ:80-5440,16 steps; (H)45-1350,12 steps
		Optional:variable 65-4000	Optional:variable 65-4000
Spindle travel	mm	127	127
Spindle feed range	mm	0.04,0.08,0.15 (3 steps)	0.04,0.08,0.15 (3 steps)
Distance between spindle axis and table surface	mm	0-400	0-400
Main motor power	kw	2.2(V)3(H)	2.2(V)3(H)
Head rotation (left - right )	°	±90°	±90°
Head rotation (front - rear)	°	±45°	±45°
Weight	kg	1750	1850
Overall dimension	mm	1550x1650x2250	1550x1650x2250

1. Crafted from high-grade Meehanite casting, the heavy, robust model is built to last and perform with distinction. 2. Solid rectangular slideways on the Y-axis ensure stability and precision during operations. 3. All machine axes are fitted with adjustable dovetail slideways, allowing for precise calibration and smooth movements. 4. The machine features right-left handed rotation capabilities, providing flexibility in machining operations. 5. Achieving high precision concentricity is effortless with taper roller bearings, maintaining less than 0.01mm deviation in the spindle sleeve. 5. The spindle sleeve features an automatic feed system, enhancing efficiency and ease of use. 6. The main switch is equipped with motor protection and includes a right/left handed rotation switch and an emergency-stop button, ensuring user safety. 7. This machine is not only price-efficient but also offers enduring value, making it a wise investment for any workshop.
Packaging & Shipping
Company Profile
Henan Rowdai Machinery Equipment Co., Ltd., located in the bustling heart of Zhengzhou, China. With extensive experience in exporting machinery, we deliver not only consistently high-quality products but also exceptional customer service.We offer a comprehensive range of machine tools to the international market, including Lathe Machines, CNC Lathe Machines, Milling Machines, CNC Milling Machines, CNC Machining Centers, Grinding Machines, Hydraulic Presses, Bending Machines, Drilling Machines, Press brakes, Shearing Machines, and a variety of indispensable machine tool accessories. Our in-house engineers bring years of industry expertise and undergo rigorous training to ensure top-notch service. These professionals assist customers by inspecting goods pre-shipment and closely monitoring every stage of the production process. Our commitment to excellence ensures seamless operations and satisfaction at every step. Our dedicated team is committed to delivering top-tier quality and service to our esteemed customers globally. Trust us to be your reliable partner in the world of machinery, enhancing efficiency and productivity with every machine.
FAQ
1: Where is your company A: Our company is located in Tengzhou City, Shandong Province.2: What about your warranty?A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free3: How do you offer after-sale service?A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems4. What is your standard package? A: Our package is export standard plywood case with pallet.5: What's the Payment Terms? A: T/T, 30% initial payment when order, 70% balance payment before shipment; 6: What's the MOQ? A: 1 set.

---
