Aluminum 370/440V Round Cbb65 a Motor Run Air Conditioner Capacitor

US$0.75
100-9,999 Pieces
US$0.60
10,000+ Pieces

Basic Info.

Model NO.
CBB65
Packaging Type
Surface Mount
Capacitance
1~80UF
Structure
Fixed Capacitor
Manufacturing Material
Polypropylene
Electrolyte
Film
Usage
Starting
Tuning
Polystyrene Capacitor
Filter
Film
Electrial Parts
Electrial Metel Capacitor
Air Conditioner Parts
Capacitor
Motor Parts
Capacitor
AC
Capacitor
Film Capacitor
Capacitor
Transport Package
Carton
Specification
CBB65
Trademark
SMILER
Origin
Guangdong, China (Mainland)
Production Capacity
50, 000 PCS Per Day

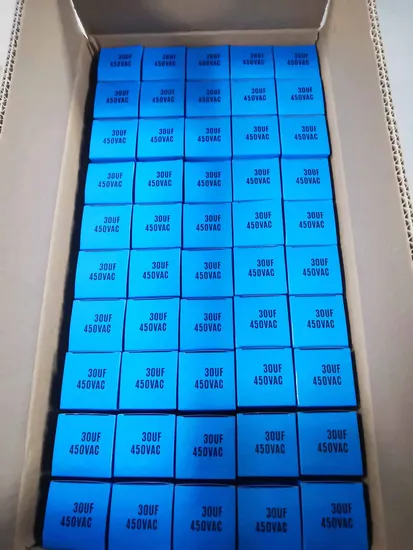

Packaging & Delivery

Package Size
4.00cm * 2.00cm * 3.00cm
Package Gross Weight
0.030kg

Product Description


Safety approvals:CQC/UL/VDE/TUV/CL
Approval standardGB/T3667,UL810,EN60252
Climatic category25/70/21,25/85/21,40/70/21,40/85/21
Rated voltage150VAC~600VAC(50-60Hz)
Capacitance range1uF~80uF
Capacitance tolerance+_5%(J),+_10%(K),+10%(U),-5%(U)
Testing voltage
Between terminals2*Un(VAC)/5s
Between terminals and case2*Un+1000(VAC)/5s(>=2000VAC)
Insulation Resistance(20ºC)
Between terminals>=2000MΩ,UF(500VDC,5s)
Tangent of loss angle(20ºC)<=0.002(100Hz)
Class of safety protectionS0/S3
Fault Currency10,000AFC(UL810)
Capacitance(uf)250/300VAC400-450VAC
CylindricalOcalCylindricalOcal
DHL*W*HHDL*W*H
10uf405551.5*31.5*65306051.5*31.5*65
15uf405551.5*31.5*653560/
20uf406551.5*31.5*65406051.5*31.5*75
25uf406551.5*31.5*65406051.5*31.5*85
30uf///407071.5*45*75
35uf407571.5*45*754570/
40uf///457071.5*45*85
45uf457571.5*45*754580/
50uf458571.5*45*85459071.5*45*100
60uf459571.5*45*1005090/
Model: CBB65 Case Material: unpainted aluminum case.Dielectric Material: metallized polypropylene film.Capacitance Tolerance: ±5%.Operating temperature: -40ºC to +70ºC/-104ºF to +158ºF.Frequency: 50/60 Hz.Safety rated: 10,000 AFC - Available Fault Current.Operating Life: 60,000 hours with 94% survival (In accordance with the EIA­456 Industry Standard).Dissipation Factor: 0.1% maximum.
