CO2 Laser Code Jet Printer Manufacturer

Product Description

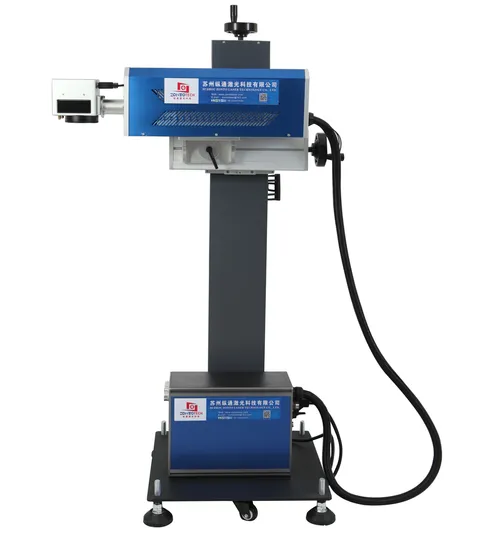

CO2 Laser Code Jet Printer Manufacturer
-Compact design and fast installation
-Easy to be integrated at any position of the production line
-Original design, small size and lightweight, equiped with a small table or mounting bracket with the use of production line
-More further environmental protection and energy saving
-Un-contact processing, more environmental protection, lower power, fast laser marked
-Easy to use and Excellent compatibility
-Simplicity of operation, easy to use, powerful anti-jamming performance, enough memory, multiply input and output interface, use with automatical anti-counterfeit and anti-disorder system
-Adopt import laser, more safer and faster.
APPLICATIONS
Food, Beverage, Tobacco, Electronic Component, Pharmaceuticals, ceramic wares.
Automobile part, Electrical Wire, Cable, Arts and Crafts, Rubber
LASER CO2 Metal RF laser
Power: 30W
High-speed, stable performance, adjustable power, applicable to most of nonmetal material
Carve and cut product very convenience, depth could be adjustable.
Operate Interface
-Configure with laptop
TECHNICAL SPECIFICATIONS

Model	JP-C30
Laser type	CO2 laser		Rf metal chamber fully enclosed CO2 laser, Wavelength 10.6 um
	Rated power		30W
	Power stability		±3%
laser generator	USA ACCESS LASER COMPANY
Galvanometer (scanning mirror)	SUNNY Company TS8310A
Small step response time long order	0.2ms
Control system	high performance computer
Operating system	Windows XP
Operation Interfaces	Chinese, English
Connector	Ethernet, USB, RS232, multi-channel custom I/O. can with the PC for instant messaging, accept control center control and accept logistics system at any time, from data information engraving.
Engraving content	Text, logo, barcode, two dimensional barcode, image, crossed font bitmap body; Automatic serial number batch number and real-time clock automatic production date and shelf life, etc
Character precision	Engraving depth	≤3mm(according to arbitrarily regulate material and customer requirements)
	Minimum linewidth	0.1mm
	Character Size	text height 0.3mm-80mm
	Repeatability precision	0.004mm
	Minimum word spacing	Arbitrarily regulate according to the requirement
Engraving range	Standard 100x100mm(70x70mm;160x160mm; 300x300mm optional )
Focal distance	Standard 134mm(70~400mm optional)
Engraving speed	80M/min
Applicable material	Paper/plastic/pottery/glass/wood/film/a coating metal, etc
Engraving font	TTF font, and support of all eight species (including three bitmap fonts totaling hundreds of font) laser carved standard special font, it can also be a made-up font
Serial number	Automatic output serial number, date and shift yards from include user defined yards
Marking direction	In horizontal direction is mobile, laser any with stents in level to vertical direction can be any Angle rotation and marking, convenient in product profile or cant engraving information
Cooling method	Forced air cooling
Voltage	220V
Environmental temperature and humidity	5-45 degrees Celsius, 10% - 90% RH, no dewing

---
