Advanced Double Station Bottle Blow Moulding Machine for Efficient Production

Product Description

Products Description

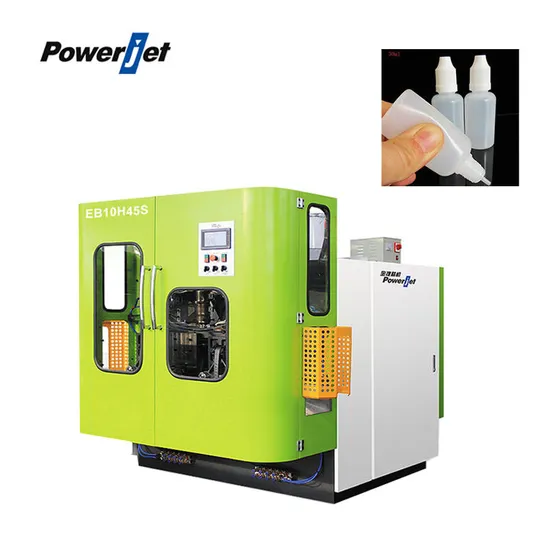

H SERIES HIGH-SPEED DOUBLE STATION EXTRUSION BLOW MOLDING MACHINE EB10H.
Powerjet Double Station Extrusion Blow Molding Machine EB10H is specialized for manufacturing bottles and containers which Max 1L. Max Bottle Capacity - 1(L)
Clamping Force - 27(KN)
Extrusion Weight(HDPE) - 30(kg/hr)
Applications - Wide Range Of Bottles For Daily necessities, toiletries, beverages, water tanks, laundry detergent/shower gel/motor
oil bottles, etc.
Product Paramenters

Model			EB10H
Max. Product	L	1
Clamping Force	KN	27
Screw Diameter	mm	50
Screw L/D Ratio	L/D	22
Screw Rotary Speed	RPM	75
Extrusion Weight (HDPE)	kg	30
Extrusion Motor Power	KW	11
Pump Motor Power	KW	5.5
Heating Capacity	KW	8.5
Operation Pressure	Mpa	0.6~0.8
Air Consumption	m3/min	1
Cooling Water Consumption(25°c)	L/min	13
Machine Dimensions (LXWXH)	mm	2200*2000*2200
Machine Weight	kg	38000

FAQ
Q1: Are you a factory or trading company?
A1: We are a factory.
Q2:Do you offer guarantee for the products?
A2: Yes, we offer 1 years warranty to our products.
Q3: Where is your factory located?
A3:POWERJET PLASTIC MACHINERY co., LTD. the headquarter is located in Foshan high tech Industrial Park, Sanshui, Foshan in Guangdong ProvinceWe are warmly welcome you to visit us.

---
