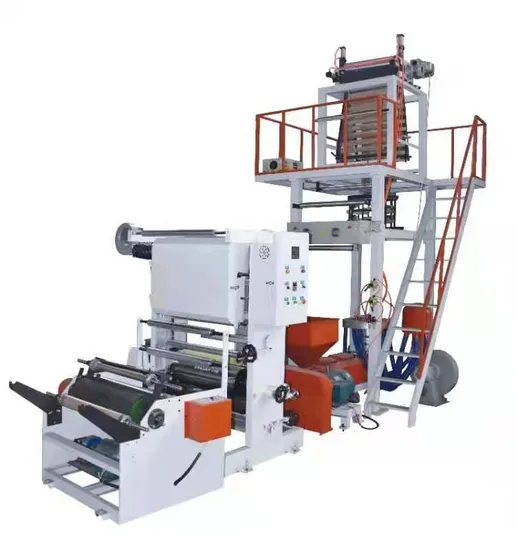

Biodegradable Polyethylene Polythene HDPE LDPE ABA Film Blowing Machine for Rolling Gabage Bag

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
SJ-55/FM-700
Raw Material
PE
Maximum Folding Width of Film
800mm
Screw Diameter
55mm
Automation
Automatic
Computerized
Computerized
Machine Weight
1.2t
Certification
CE, ISO9001:2008
Die Quantity
2 PCS: HDPE Die and LDPE Die
Screw L/D
28:1
Output/H
40kg/H
Printing Width
600mm
Motor
Siemens Brand
Inverter
Delta Brand
Transport Package
as Required
Specification
CE
Trademark
NuoSheng
Origin
China
HS Code
84773000
Production Capacity
5sets/Month

Product Description


Use:
1. - Garbage bag production line include 3 or 2 set machine : film blowing machine , bag making machine and wiht or without the printing machine
2. - For producing kinds of plastic bag, like rolling type garbage bag, shopping bag
3. - Available for both HDPE and LDPE
4.- This kind of machine has the advantage of higher production capacity, saving energy, labor cost and factory space.
Technical Parameters:

Type		 SJM-45-700 SJM-55-900 SJM-65-1400 SJM-75-1700 SJM-85-2200
Max. lay flat width(mm) 500 800 1200 1500 2000
Max. output(kg/h) 60 100 150 200 250
Raw material HDPE/LLDPE/LDPE/EVA
Screw diameter(mm) 45 55 65 75 85
Screw L/D Ratio L/D 32:1 32:1 32:1 32:1 32:1
Screw max. rotation speed 150r/min 150r/min 150r/min 150r/min 150r/min
Extruder driving power 15 18.5 30 45 75
the way of screen changing of extruder Hydraulic/pneumatic/manual twin-station changing screen quickly
Automatic screen changer
Die structure With or without IBC(internal bubble cooling system)
Air-ring structure Rotary cual-lip
Reversing haul-off system Film turning mode horizontal
Angle of reversing 360
Take-off wond-up speed 60-80m/min 60-80m/min 60-80m/min 60-80m/min 60-80m/min
Total Power(kw) 38 50 65 78 100
Weight(T) 4 8 10 12 16
