Product Details
Product Description
Product Description

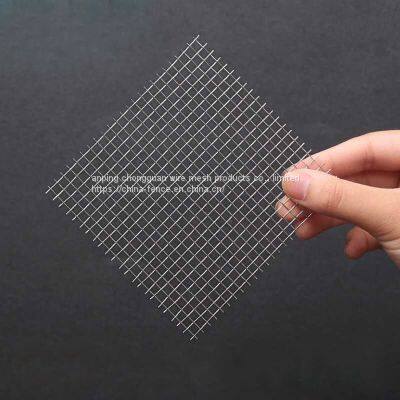

Stainless steel wire mesh is a woven type mesh which is made of high quality stainless steel wire, that's AISI 304, 316, 321, 310S,430,Lean Duplex material and other wires. the materials are acid and corrosion resistant withstand high temperatures.
Weaving Methods: plain weave, twill weave, plain dutch weave, twill dutch, etc.
Specification:
(1)plain weave: from 1x1mesh to 500x500mesh.
(2)twill weave: from 100x100mesh to 635x635mesh.
(3)plain dutch weave: from 12x64mesh to 80x700mesh.
(4)twill dutch weave: from 20x250mesh to 400x2800mesh.
Applications: Stainless steel wire mesh has good anti-rust and corrosion resistant,and is widely used in aerospace, mining, petroleum, chemical, food, medicine, machinery manufacturing and other industries,mainly for screening and filtration under acid and alkali environment conditions.
AISI 304: This type is the basic stainless alloy mostly commonly used for wire cloth/mesh weaving. It offers excellent property against rusting and oxidation.
AISI 304 L: Materials similar to 304, with reduced carbon content for better weaving.
AISI 316: Stainless stabilized by the addition of 2% molydbenum. It has better resistance to pitting corrosion than the other chromium-nickel stainless steels and high strength at elevated temperatures. Other mechanical properties and fabricating characteristics are similar to AISI304.
Wire cloth woven of T-316 has extensive use in chemical processing when better corrosion resistance is required than the regular chromium-nickel types.
AISI 316 L: Very similar to AISI316, yet with the reduced carbon content for better wire cloth weaving.
>>
