| US$1,000.00-100,000.00 | 1 Piece (MOQ) |

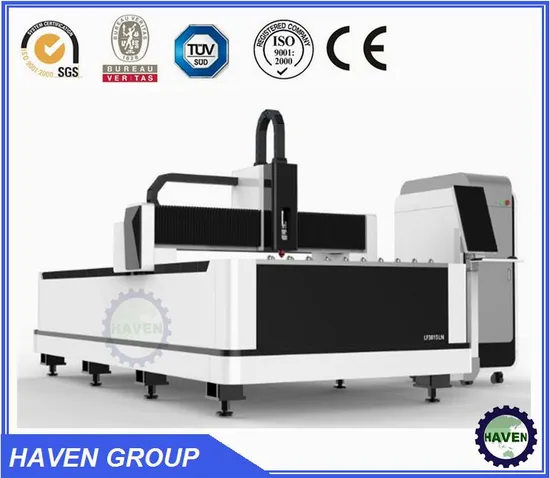

| Model | LF3015LN |
| Total Weight | 3500kg |
| Dimension | 4477*3700*1860 mm |
| Laser power available | 1000W-2000W |
| Working area for metal sheet | 3000*1500mm |
| Y-axis stroke | 3000mm |
| X-axis stroke | 1500mm |
| Z-axis stroke | 120mm |
| X/Y axis position accuracy | ±0.03mm |
| X/Y axis reposition accuracy | ±0.02mm |
| Max. Moving speed | 140m/min |
| Maximum acceleration | 1.0G |
| Max. Working capacity of sheet table | 1000kg |
| Specified voltage and frequency | 380V/50Hz/60Hz/60A |
| Continuous working time | 24h |
| Model | LF3015LN |
| Power | 500W-2000W laser source |
| Unique Advantage | Aviation Aluminum Beam |
| Special Function | WIFI Remote Control |
| Laser Head | [Swiss] Raytools Auto-Focus Laser Head |
| Gear & Rack | [Taiwan ] YYC |
| Servo Motor | [Japan] YASKAWA |
| Motor reducer | [France] Motor Reducer |
| Electron Components | [France] SCHNEIDER |
| Pneumatic Components | [Taiwan] SMC |
| Bearing | [Japan] NSK |
| Screw | [Taiwan] TBI Ball screw |
| Guide Rail | [Taiwan] HIWIN |
| Automatic Rail Lubrication System | Yes |
| Control System | CYPCUT |
| Cooling Type | Water cooling |
| Protective Glasses | One Pair |
| Remark: We also can adjustment the configuration according to your special requirement. | |
| 1000W | 1500W | 2000W | 3000W | |||
| Material | Thickness | Gas | Cutting Speed(m/min) | Cutting Speed(m/min) | Cutting Speed(m/min) | Cutting Speed(m/min) |
| Carbon Steel | 1 | O2 | 15--22 | 18--25 | 25--33 | 30--40 |
| 2 | 5.0--6.6 | 7.0--10 | 7.0--10 | 5.5--7.0 | ||
| 3 | 2.5--3.85 | 4.0--5.5 | 4.0--5.5 | 3.6--5.0 | ||
| 4 | 2.0--3.3 | 2.5--3.5 | 2.8--4.0 | 3.0--4.5 | ||
| 5 | 1.5--2.0 | 2.0--2.8 | 2.2--3.0 | 2.6--3.5 | ||
| 6 | 1.4--1.65 | 2.0--2.42 | 2.3--2.86 | 2.3--3.2 | ||
| 8 | 0.9--1.32 | 1.2--1.65 | 1.8--2.2 | 1.8--2.6 | ||
| 10 | 0.6--1.0 | 1.0--1.32 | 1.2--1.65 | 1.2--2.0 | ||
| 12 | 0.5--0.8 | 0.7--1.0 | 1.0--1.32 | 1.0--1.6 | ||
| 14 | 0.6--0.8 | 0.7--0.8 | 0.9--1.4 | |||
| 16 | 0.6-0.7 | 0.7--1.0 | ||||
| 18 | 0.4--0.6 | 0.6--0.8 | ||||
| 20 | 0.5--0.8 | |||||
| 22 | 0.3--0.7 | |||||
| Stainless Steel | 1 | N2 | 18--25 | 20--27 | 27--33 | 30--35 |
| 2 | 5--7.5 | 18--22 | 18--22 | 13--21 | ||
| 3 | 2.0--3.1 | 4.5--5.5 | 4.0--6.5 | 6.0--10 | ||
| 4 | 1.2--1.3 | 2.0--2.5 | 3.0--4.2 | 4.0--6.0 | ||
| 5 | 0.6--0.7 | 1.5--2.0 | 1.8-2.5 | 3.0--5.0 | ||
| 6 | 0.2--0.45 | 0.7--1.0 | 1.2-1.8 | 2.0--4.0 | ||
| 8 | 0.2--0.45 | 0.7-1.0 | 1.5--2.0 | |||
| 10 | 0.6--0.8 | |||||
| 12 | 0.4--0.6 | |||||
| Aluminum | 1 | N2 | 10--13.2 | 15--27.5 | 25--31 | 25--38 |
| 2 | 2.8--3.6 | 7.0--8.6 | 10--13.2 | 10--18 | ||
| 3 | 0.7--1.5 | 5.0--6.5 | 4.0--6.0 | 6.5--8.0 | ||
| 4 | 1.0--1.65 | 2.0--3.0 | 3.5--5.0 | |||
| 5 | 0.7--1.0 | 1.2--1.8 | 2.5--3.5 | |||
| 6 | 0.4--0.7 | 0.7--1.0 | 1.5--2.5 | |||
| 8 | 0.6--0.8 | 0.7--1.0 | ||||
