30 Years for Poultry Chicken Farm Equipment Manufacturing Animal Feed Pellet Mill

Product Description

30 Years for Poultry Chicken Farm Equipment Manufacturing Animal Feed Pellet Mill with CE
1.Introduction :

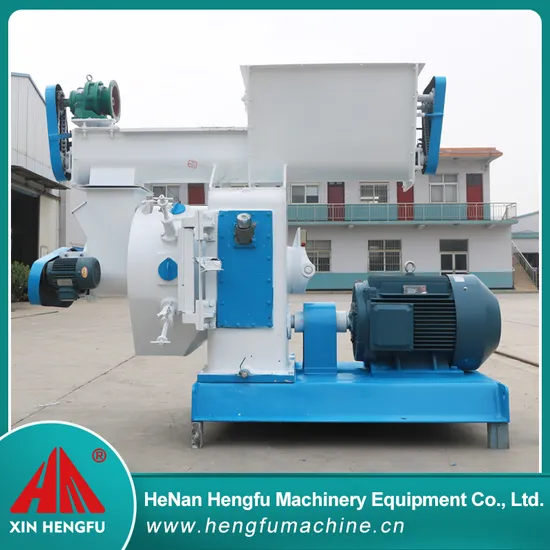

Poultry feed pellet machine
Ring die pellet mill are mainly suitable for the middle and small scale feed factory pellet feed making, and may use in the mechanization raising chickens, duck, pigs and various poultries farm feed produce.
Also can used for aquatic feed making, such as fish, shrimp and so on.
Die and Roller of poultry feed mill have long service life. Main drive adopts high accurate gear drive with higher efficiency, steady running and low noise.
Ring die pellet mill is fitted with deironing and overload protection device and protection on the machine is fully considered during the operation. High precision gear dribing is adopted, resulting in high driving efficiency and stable working.
The imported bearing and oil seal are used for key positions of drive of the machine so that the machine has long service life and low noise.
Ring die pellet mill can be fitted with single-layer, multiple -layer jacket conditioners or double-shaft differential conditioner so as to meet the different requrements of producing high grade livestock and poultry feed and aquafeed.
2.Application scope:
Designed and produced specifically for feed processing plants, large and medium-sized farms
3.Machine Structure:
4.Technology parameters :

Model	Transfer Method	Main Power(kw)	Feeder Powder(kw)	Conditoner Power(kw)	Capacity(t/h)
9KWH250	Belt Drive	22	1.5	2.2	0.5-1.5
9KWH304	Belt Drive	30/37	1.5	2.2	1-3
9KWH320	Gear Drive	37	1.5	2.2	2-4
9KWH350	Gear Drive	55	1.5	3	3-6
9KWH400	Gear Drive	75/90	2.2	3	7-10
9KWH420	Gear Drive	110	2.2	3	10-15

5.More details of Pellet mill:
The surface of feed pellet is hard and smooth, easy to store, the pressure of steam in pelleting can also eliminate bacteria and virus, reduce livestock and poultry diseases
6.Customer cases:
According to customer production requirements, reasonable units can be tailored

---
