Powerful Rotary Brush Deburring Machine for Industrial Use with CE Marking

Product Description

Product Description

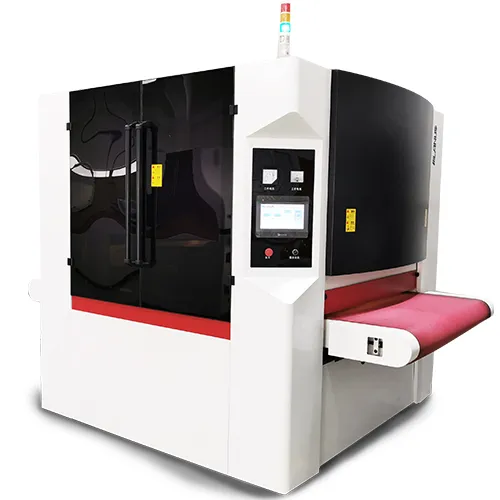

Lanuss 33 Series Metal Deburring Machine

1.Applcable scope ofequlipment: suitable for at plate parts, carbonsteel plate,stainless steel plate, aluminum plate,copper plate titanium alloy, all kinds of non-ferrous metals,rubber and plastic materials.
2.Equipment funetion: pre-grindling, drawing, polshing, scratching,deburing, chamfering, etc. forlaser cuting,shearing, punching,cuting, plasma cuting.
Detailed Photos


1.Siemens PLC touch screen
Support English interface
2.Famous Brand components
SND Electric Systems, NSK bearings,etc.
3.Dust Collector
Specially designed for deburring and polishing processes
Product Parameters

model	Lanuss 33 Series-L800
Working width	≤800mm
Minimum processing size	30mmX30mm Workpiece without holes
Overall power	15.25KW without dust extractor
Sanding Belt Size	Φ1910mmX800mm
Brush Roller Size	Φ300mmX300mm
Conveyor feeding speed	1~8m/min frequency control
Abrasive Belt Line Speed	12m/s
Brush spin speed	8~26m/s frequency control
Brush rotation speed	1~15r/min frequency control
Number of brushes	4
Number of sanding belts	1
Equipment external dimensions	2650mmX1750mmX2150mm
Dust removal air volume	4000m³/h
Weight of the machine	About 2.5 tons

Company Profile
Our Advantages
Certifications
1.Overseas after-sales service is available.
2.1 year warranty.
3.Foundation drawings, manual book, electric wiring diagram, electric manual book, and maintenance book, etc. provided.
4.We have over 20 agents overseas who provide free technical services. FAQ
Q: Do you have CE certification and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service. At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: If we are interested in your machine, how do we choose?
A: Please tell us your product information and polishing process, then we can recommend the suitable machine to you.
Q: How about warranty?
A: 1 years quality guaranty. Lifetime technical support and consumables at the lowest price.
Q: Do you have after sales support?
A: Yes, we have rich experience in handling after-sales issues via video or email. Meanwhile the engineers are available to service overseas. We have agents in different countries too if you want local service or sample testing.
Q. It's not convenient for me to go to China, but I want to see the condition of the machines in the factory. What should I do?
A: If it's not convenient to come to China, our sales manager can take you to know the factory by online video conference.

---
