Chinese Stone CNC Router Granite Cutting Engraving Machine

Product Description

Chinese stone cnc router granite cutting engraving machine
Keywords:15 years experience of production
ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
Three Brand: Mars, Golden Eagle,Borio
Description:

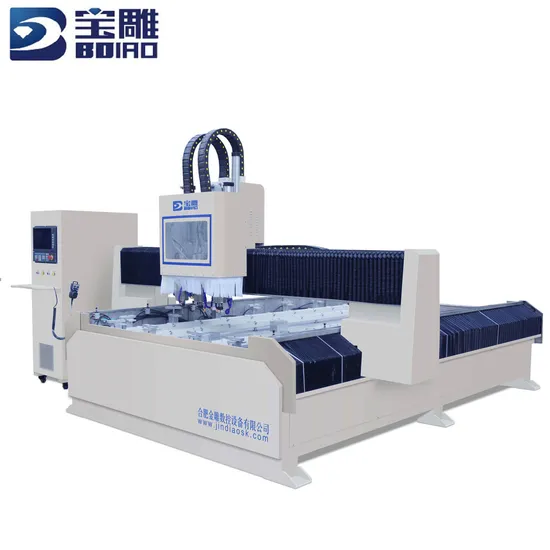

BD1325A High Quality Marble Cutting and Engraving CNC Machine for Stone Window Making is BOIRO featured machine widely used in stone processing industry,tombstone processing industry,mold processing industry,all kings of art relief,decoration industry,ceramic processing,advertising industry and so on.BOIRO design it for many years, now popular in the market, it's economic machining center of stone cutting machine.
Functions:
The functions of this machine include three-dimensional relief and two-dimensional sculpture such as cutting, chamfering and drilling.
Applicable Materials:
Marble,jade,granite,tombstones,milestones,ceramic tiles,grass,bluestone,etc..
Application Scope:
Widely used in stone processing industry, tombstone processing industry, mold processing industry, all kinds of art relief, decoration industry, ceramic processing,advertising industry and so on.
Parameters:

Basic	X/Y/Z Axis Working Area	1300*2500*450mm
	Machine Size	3200*2100*1800mm
	Working Table	Aluminum T-slot table protected with PVC
	Machine Structure	Thick steel welded, with aging treatment
Main	Control System	NC Studio 65C
	Drive Motor	Leadshine driver motor
	Spindle Motor Power	1*5.5KW water cooled
	Spindle speed	Adjustable Rotational Speed with 0-24000 rpm/min
	Inverter	Zoncn
Others	Drive System	X/Y axis helical rack & pinion, Z axis Taiwan ball screw
	Guide Rail	Taiwan imported linear guide rail PMI
	Cooling System	Circulating water-refluxing design
	Oil System	Automatic Oil system
	Electric Appliance	Germany Schneider
	Reducer	Planetary reducer
	Working accuracy	±0.08mm
	Re-positioning accuracy	±0.05mm
	Max. Traveling Speed	25 m/min
	Max.Working Speed	15 m/min
	Water Sink/Tank	Powder-painting (Stainless steel is optional)
	Dictate Format	G-Code / HPGL
	Working Voltage	AC380V 3PH 50HZ

Accessories:
Performance Features:

1	Thick steel tube welded body structure, with aging treatment, ensure no deformation, high rigidity, good stability.
2	Famous brand big torque motor, low noise, large power, high efficiency.
3	Adopt imported square linear guide rail, high speed, high precision, long life.
4	Z axis adopts high precision German ball screw drive, ensure accuracy; Y axis adopts high precision gear rack drive, fast speed, big strength.
5	Reasonable dustproof and waterproof design, fully protect the machine transmission parts.
6	Good compatibility, cam be compatible with any advanced CAD/CAM software, including Type3/ ArtCAM/ CAXA/ UG / pro-e/ Mastercam/ JD Paint/ Ucancam, etc..

Samples:
