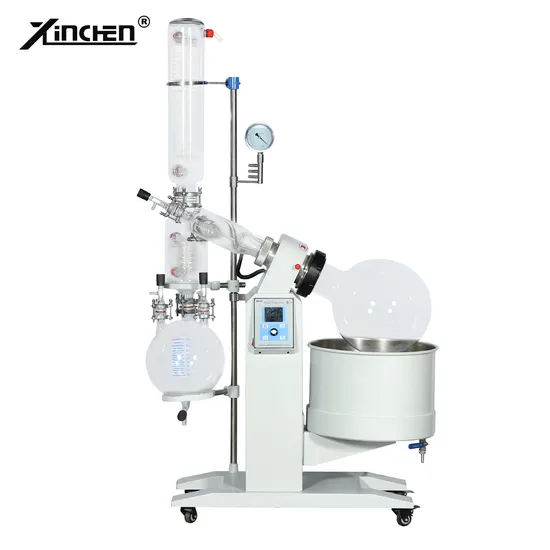

10L 20L 50L Rotary Evaporator Mini Vacuum Pump Rotary Evaporator for Essential Oil Distiller

Product Description

Product Description
Rotary evaporator is an idea instrument necessary for concentration, drying and recycling in chemical industry, pharmaceutical industry, foods, environmental protection,universities and colleges, research laboratory,etc.
Product Parameters XINCHEN Rotary evaporator capacity has 1L,2L, 5L, 10L, 20L, 30L, 50L,100L.

Mode	XZ-5L	XZ-10L	XZ-20L	XZ-50L
Rotary flask	5L Flange mouth φ50	10L Flange mouth φ125	20L Flange mouth φ125	50L Flange mouth φ125
Receiving flask	3L	5L	10L	20L
Rotation speed	20-140rpm	20-130rpm	20-130rpm	20-110rpm
Rotary motor power	250W	250W	250W	250W
Condenser pipe	Vertical dual coil pipe	Vertical type,main condenser+auxiliary condenser,efficient tri-back flow condenser pipe
Bath material	Stainless steel
Tem. range	RT-100ºC
Max vacuum degree	-0.096Mpa
Evaporative capacity	Water>=2L/h; Alcohol>=4L/h	Water>=4L/h; Alcohol>=6.5L/h	Water>=5L/h; Alcohol>=11L/h	Water>=10L/h; Alcohol>=19L/h
Lifting function	Electric lifting
Lifting stroke	0-150mm	0-160mm	0-190mm	0-180mm
Power supply	220V/50Hz	220V/50Hz	380V/50Hz	380V/50Hz
Overall power	1.5Kw	3Kw	4.5Kw	9Kw
Dimension	830x400x1100mm	990x550x1650mm	1160x600x1780mm	1350x770x2150mm
Over-current protection	Have
No-spark electirc control	Have
Ex-proof upgrade	Ex-proof modification on motor, rotation and heating control, lower heating power density, equip dry heat and overheat cut-off protector

Product Features 1. Glass charging valve, new structure and glass material applied, which is able to offer purely clean charging process and durable use experience.2. Flange quick press ring, offer new experience on easy, reliable, and high sealing connection for flanges, no tools required.3. PTFE vacuum discharging valve, which is anti-corrosion, no vacuum degree, no pollution to solvent received.4. Ex-proof modification, explosion proof system are available.5. Bumping tube design to prevent unexpected solution bumping into receiving flask.6. Numerical control constant temperature heating bath.7. Sealing system are anti-corrosion and wearable.8. Complete set customize include rotary evaporator ( 1L,5L,10L,20L,50L,100L ), chiller, vacuum pump, vacuum controller.

---
