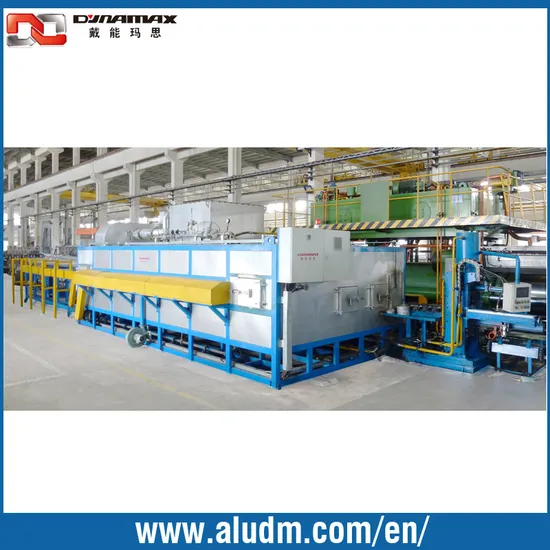

Aluminum Extrusion Machine with Gas Burner Billet Heating Furnace

Product Description

1)The Tonnage of the extrusion press: 900T
2)Size:127-6000
3)Fuel: Natural gas
Natural gas pressure: 20000-30000Pa; Max gas consumption: 45m³/h;
4)power producer:
A,380V AC:
B,air compressor producer: pressure 0.6MPa .natural gas:3m³/h
C.circulating cooling water: pressure 0.4Mpa. Water: 4m³/h

Production capacity	700Kg/h
Heating temperature	0-550ºC
Store billets number	11
Original heating time	2.5-3h
Billet shear length	250-650mm (adjustable)
Shear length precision	±1mm
Section deformation precision	±3mm
Process production index	gas 30 M³/ton. Profile (Natural gas calorific value no less than 8500 Kcal)
Total power	23.5 KW
Circulating fan power	5.5 KW
Hydraulic pressure	rated pressure: 16Mpa
Independent hydraulic station	11KW
Operation mode	PLC, touch screen
Temperature control system	3 groups temperature controller show furnace temperature. High temperature protection, thermal cycle air blower let the billet heat equality.

9. Total power: 23.5 KW
10. Circulating fan power: 5.5 KW
11. Hydraulic pressure: rated pressure: 16Mpa
Independent hydraulic station: 11KW
12. Operation mode: PLC, touch screen
13. Temperature control system:3 groups temperature controller show furnace temperature. High temperature protection, thermal cycle air blower let the billet heat equality.

---
