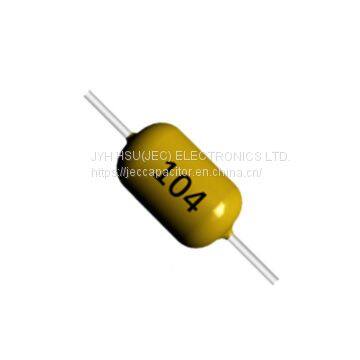

104 low-voltage-ceramic-capacitor 104 50v Ceramic Capacitor Lighting Capacitor 224k Safety Film Capacitor
Small size and large capacity. Compared with the radial type, the auto-amounting cost is lower, the height of the parts is reduced, and the installation density is increased, which occupy less space.
Technical requirements reference Standard
| IEC 60384-9
|
Rated Voltage(UR)
| 25 / 50 / 100 / 500 / 1000 / 2000 VDC
|
Capacitance Range
| 0.5pF to 0.1μF，100pF to 10μF
|
Withstand Voltage
| 2.5UR(DC)
|
Capacitance Tolerance
| ±0.25pF(C), ±0.5 Pf(D), ±5%(J),±10%(K ),±20%(M)，±10%(K ),±20%(M),±80%-20%(Z)
|
Dissipation Factor (tgδ)
| ≤0.15%，X7R≤3.5%,Y5V≤7.0%(220nF), ≤10.0%(220~470nF)≦12.5%(470 nF ~10μF)
|
Insulation Resistance(IR)
| C≤10 nF:IR>10000MΩ ; C>10 nF:R .C>100MΩ. μF，C≤25 nF:IR>4000MΩ ; C>25 nF:R.C>100MΩ.μF
|
Operating Temperature Range
| -55℃ to +125℃，X7R,-55℃ to +125℃ ; Y5V,-25℃ to +85℃
|
Temperature Characteristic
| NPO,N750,SL，X7R,Y5V
|
Flame Retardant Epoxy Resin
| UL94-V0
|
If You Are Finding Lighting Capacitor and High Density Capacitor and China Capacitor In China, We Will Be Your Best Choose! We Have Our Own Factory, So We Can Give You A Cheap Price!
