10 Inch 20 Inch PP Filter Housing for Code 0 Filter Cartridge

Product Description

Product Description Pharmaceutical Grade Pre-filtration 20'' pp filter housing 222
General Description

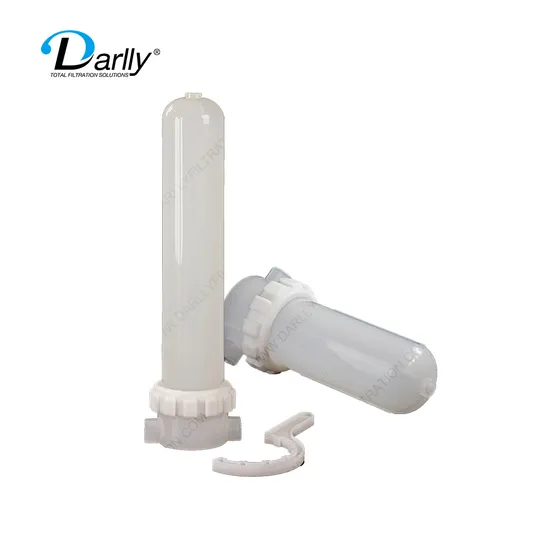

PP filter housing 222 series is made from pure polypropylene material,light weight and simple configuration design makes the installation and operation easier. The housing is designed to fit 10'' and 20'' 222 single open end cartridge. The transparent housing bowl can be easily observed with the naked eye to determine whether the internal filter cartridge need to replace. It can be used in the filtration of water and general chemicals in kinds of industry.
Applications
°Pharmaceutic industry
°Chemical
°Microelectronics
°Cosmetics
°Food& Beverage
°Ink
Features
°Made from pure virgin PP,low precipitation
°Accepts 10'' and 20'' 222 o-rings style cartridge,flat closed end.
°Wide chemical compatibility
°Transparent housing bowl enables visual inspection of the cartridge
Specifications

Head	pure virgin PP
Bowl	pure virgin PP
Mounting bracket	stainless steel
Inlet/outlet	3/4'' NPT
vent	1/4'' NPT
Drain	1/4''NPT
Max.Operating temperture	60degree
Max.operating DP	6bar@21degree

Order information
B222G Length:10''/20'', seal material :EPDM,VITON,NBR

---
