Horizontal type universal milling machine from China

US$11,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
X6332A
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
process
metallic or non-medallic materials
Table size
54"*12"
Transport Package
Wood Pallet
Specification
1900*1750*2230
Trademark
Hercules
Origin
China
HS Code
8459699000
Production Capacity
20000/Year

Product Description

Feature:

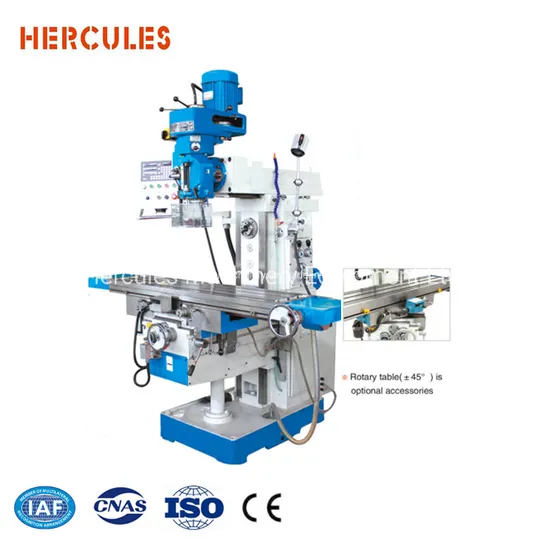

This milling machine is a kind of universal light duty metal processing machine,
two functions of vertical and horizontal mills, it could proceed on medium or small parts of the plane, inclined plane, groove and spline, etc..
Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
Specification
Table size mm 1370*320
Table travel X/Y/Z mm 820/300/400
Spindle taper ISO40(H,V)
Max turning angle of working table deg ±45
Tilt angle for milling head deg left and right ±45
T-slot number/width 3/14mm
Arbor dia. mm 27
Disance from horizontal spindle center to table mm 75-475
Disance from spindle nose to table mm 160-560
Distance from spindle axis to ram surface mm 200
Spindle speed range r/min 65-4660(V) 35-1500(H)
Feeding range of longitudinal, cross travel mm/min 30-830
Auto-feeding of Z-axis mm/min 23-625
mm/min 1335
mm/min 1000
Horse power for main motor kW 3.7(V) 3.0(H)
Overall dimensions mm 1900*1750*2230
N.W/G.W KGS 1950/2250
