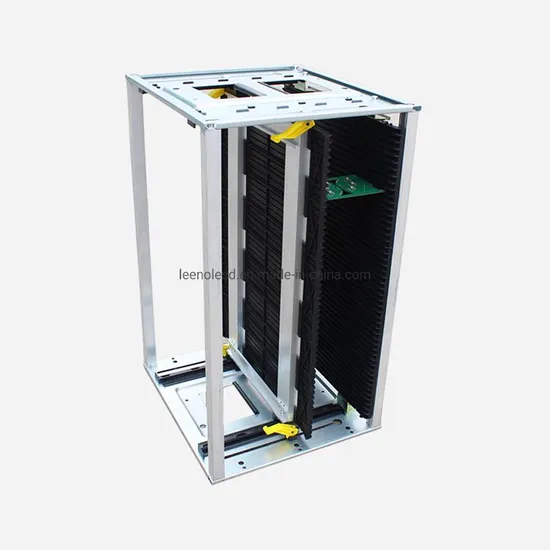

Ln-B803 High Quality SMT Storage Holder PCB Anti Static Adjustable ESD Magazine Rack

Product Description

LN-B803 High Temperature SMT PCB Storage ESD PCB Magazine Rack
1.Smooth-Width adjustment using our patented rack & pinion system.
2.ESD Safe plastic card guides, 50 slots.
3.Heat-resistant card guides for board temperature up to 80°C.
4.Compatible with all brands of equipment.
5.Leenol Rack is RoHS compliance.
6.High Quality Plastic ESD Antistatic Magazine PCB Adjustable Racks
7.SMT Antistatic ESD Magazine Rack Anti Static PCB Storage Holder
8.SMT Antistatic ESD Magazine Rack Anti Static PCB Storage Holder
9.Anti Static High Temperature Resistance Adjustable ESD Magazine SMT Storage Holder PCB Rack
10.SMT ESD Magazine Rack For PCB Storage Gear Adjustment Type
Product Description

Product name	LN-B803 High Temperature SMT PCB Storage ESD PCB Magazine Rack
Material	Plastic and Metal
Surface resistance	10e4-10e8ohms
Heat resistance	100degree
External dimensions	355*320*563mm (Availale for storing 50pcs of PCB plates)
Size of PCBs to be accommodated	355*(50-250)mm Side guide slot, with depth of 3mm, width of 5.5mm and pitch of 10mm The top and bottom boards are made of metal, screw adjustable design allows easy operation
Features	1, Automation requires precision. For the use of the PCB Magazines in automated assembly lines, precision, stability and flexible are our most important quality assurance. 2, The stable and robust frame construction guarantees a long lasting use of the magazine rack in your production. 3, The rack walls are manufactured from conductive materials, which could be temp resistance to 120degree around 4, Usually, handling different PCB sizes, the magazines have to be adjusted according to the PCB width quite often. This style gear belt will help you quick adjustments in seconds
Applications	1.It can be combined with a variety of logistics containers and workstations, it is widely used in various warehouses, production sites and other occasions. 2.It greatly helps the circulation, storage, and integrated management of PCB boards

	#1	#2	#3	Outer Dimension				Card Guide						Slots	Wight
												Ref. Position			(kg)
Model No.	Base	AJ Method	Temp	L	W	H	AJ	C	D	E	P	A	B
LN-A801	P	Screw Adjust.	80°C	355	315	580	80-250	353	3.5	7	10	34	34	50	5
LN-A802	P	Screw Adjust.	80°C	355	315	305	80-250	353	3.5	7	10	34	35.5	25	3.4
LN-B803	M	Screw/	80°C	355	320	563	50-250	353	3	5.5	10	34	34	50	5
		Gear Track
LN-B803HT	M	Screw/	120°C	355	320	563	50-250	353	3	5.5	10	34	34	50	5
		Gear Track
LN-B803HT200	M	Screw/	200°C	355	320	563	50-250	353	3	5.5	10	34	34	50	6
		Gear Track
LN-B804	P	Gear Track	80°C	355	320	563	50-250	353	3	5.5	10	34	34	50	4.5
LN-B804HT	P	Gear Track	120°C	355	320	563	50-250	353	3	5.5	10	34	34	50	4.5
LN-B805	M	Screw/	80°C	355	320	563	50-250	353	3	5.5	10	34	34	50	6.5
		Gear Track
LN-B805HT	M	Screw/	120°C	355	320	563	50-250	353	3	5.5	10	34	34	50	6.5
		Gear Track
LN-B806	P	Gear Track	80°C	355	320	563	50-250	353	3	5.5	10	34	34	50	6
LN-B806HT	P	Gear Track	120°C	355	320	563	50-250	353	3	5.5	10	34	34	50	6
LN-C807	M	Screw/	80°C	460	400	563	50-330	460	4	5.5	10	34	34	50	8
		Gear Track
LN-C807HT	M	Screw/	120°C	460	400	563	50-330	460	4	5.5	10	34	34	50	8
		Gear Track
LN-C807HT200	M	Screw/	200°C	460	400	563	50-330	460	4	5.5	10	34	34	50	9.8
		Gear Track
LN-C815	M	Screw/	80°C	400	320	563	50-250	400	3	5.5	10	34	34	50	6
		Gear Track
LN-D808	M	Screw/	80°C	535	460	570	50-390	530	4	5.5	10	34	37	50	10.5
		Gear Track
LN-D808HT	M	Screw/	120°C	535	460	570	50-390	530	4	5.5	10	34	37	50	10.5
		Gear Track
LN-E809	M	Screw/	80°C	535	530	570	120-460	530	4	5.5	10	34	38	50	12
		Gear Track
LN-E809HT	M	Screw/	120°C	535	530	570	120-460	530	4	5.5	10	34	38	50	12
		Gear Track
LN-F810	M	Screw Adjust.	80°C	630	530	570	50-460	630	3.5	6.5	10	34	37	50	13
LN-B811	P	Chain Track	80°C	355	320	560	50-250	353	3	4.5	10	34	34	50	6
LN-B814	M	Screw/	550°C	355	320	563	80-250	355	3	8	10	34	34	50	6.8
		Gear Track

ADVANTAGES:
ESD SMT PCB storage rack magazine rack
1. Have exported for more than 10 years
2. Have professional engineer and efficient management
3. Delivery time is short, normally in stock
4. Small quantity is allowed.
5. The best & professional sale services, 24hours Response.
6. Our products have been exported to USA, South America, Europe, Southeast Asia, India, Israel, UK, Australia, South Africa, etc. Win many big famous customer reputation.
7. Factory have ISO certificate, Product comply to Rohs standard.
Product Application
√ Electronic component √Semiconductor √ Embedded System √ Display technology
√ Micro and Nano systems √ Sensor √ Test and Measurement Techology
√ Electromechanical equipment and systems √ Power supply √ PCB Assembly
√ EMS and other PCBs √ Cable & Device √ Automotives √ Wireless
√ Telecom and information √ Soldering Technology √ Photovoltaic (pv) manufacturing
√ LED Lighting √ Aviation Industry √Electronic Design
Packaging
Packaging Details:2pcs/carton ,50pc/pallet .
FAQ
Q: Can you do OEM and customized design magazine rack?
A: Yes, we can.We have strong capacity to open mold and make customized magazine rack and rich experience on batch production as well.
Q: How long is your delivery time?
A: Generally it is 5-7 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the samples, samples may be free or charged according to different product value.
and all samples shipping cost normally is by collect or as agreed.
Q: What kind of Incoterm you can do?
A: We could support to do Ex works, FOB ,CNF, CIF, CFR, DDU, DAP etc. and other incoterm as agreed.
Q: What method you can help ship the goods?
A: By sea, by air, or by express, by mail post according to customer order qty and volume.

---
