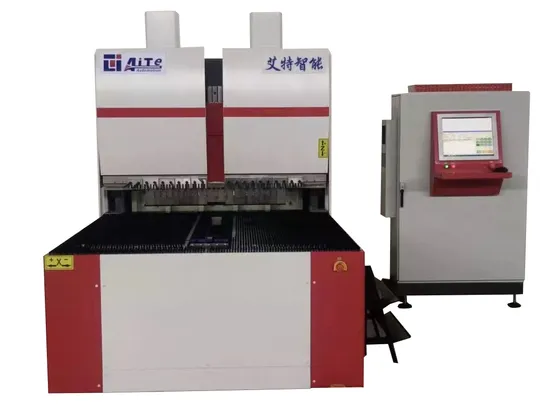

Hot-Sale Sheet Metal Bending Machine for Cabinets Automatic Panel Bender

Product Description

Product Description
Product Parameters

Technical Parameters	Unit	Model
		AT-1000
Feeding Structure	/	Vacuum sucker type
Bending Length	mm	1000
Maximum Bending Height	mm	170
Minimum Bending Height	mm	4
Min. Inner Size of Four-side Bending	mm	110*140
Min. Inner size of One-side Bending	mm	110
Minimum Arc Radius	mm	1.2
Minimum Continuous Bending Speed	s	0.2
Bending Angle	°	0-180
Axes Controllable		9
Maximum Feeding Speed	m/min	120
Equipment Size	mm	3017*2200*2200
Total Power	KW	16
Average Power	KW	2
Workbench Structure	/	Brush
Speed Adjustment		Standard
Advanced Command		Standard
Arc Command		Standard
Loading Robot Interface		Standard
Vacuum Pump		Standard
Hinge Tooling	normal	Standard
	servo	option

Detailed Photos
Servo flexible bending center frame. The frame adopts high-strength welding structure, the main structure is stable with a long service life.
Heat treatment to remove internal stress, strong rigidity, heavy tonnage, ensuring long-term stability of the machine accuracy, and improving the bending accuracy, reliability and durability of the bending center.
DOWNWARD BENDING UPWARDBENDING Products Show
1.four-side bending;2.one-side bending;3.continuously bending up and bending down without replacing bending blades .4.Flexiblely bending arc-side curbs from 0-90 degree;5.Automatically forming the squared rectangle side curbs .6.Automatically tightly folding edges of panel;7.Automatically forming rectangle boxes with max.100mm height of side edges.8.Automatically bending the various complicated combinations of various angles of edges for panel.
Application Field
Packaging & Shippingcertificate
Exhibition
Qingdao Aiotek Intelligent Equipment Co., Ltd. are one well-known manufacturer which are specialized in CNC punching machine in North China from 2006. We are one-stop supplier for sheet metal machines. In March 2017, our company moved into a high-level industrial park. The new plant is focusing on the R&D and manufacturing of high-end CNC machines for sheet metal industry, including CNC turret punching machine, all-electric servo turret punching machine, press brake, intelligent flexible bending center and laser cutting machine. We're an excellet team being engaged in intelligent flexible bending center while being the company who owns the patents for intelligent flexible bending center in China. Powerful R&D center ensures that our machines are equipped with the most cutting-edge technologies. With a professional team and rich experience, we have over 300 factories all around China as our partners for a long-term cooperation, and over 1000 sets of machines have been installed and come into use with stability. We also have timely after-sales service without time difference to ensure the stability of enterprise production without costly downtime. Our machines are widely used in electric cabinets, air conditioning, elevators, kitchenware, aluminum veneer, solar water heaters, auto and bicycle accessories, audio equipment, household appliances and other sheet metal industries. They have been exported to Southeast Asia, South Asia, Central Asia, Africa, Middle East, Russia, and other countries and regions. With us, you'll make your solution more productive!

---
