Agricultural Machinery 3zt-11 Double Spring Cultivator for Soil Loosening

Product Description

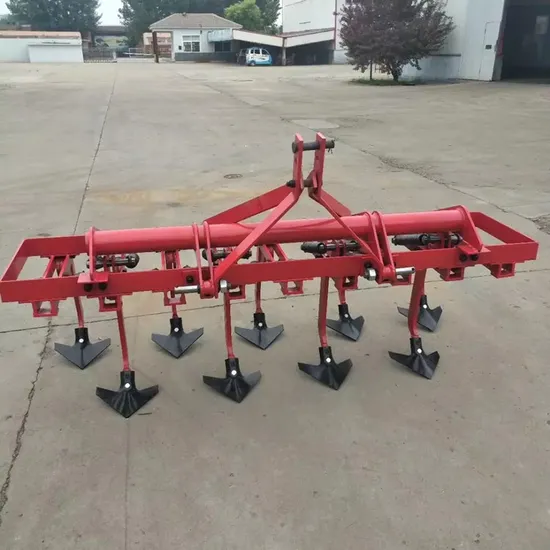

3ZT-11 Rear Suspension Double Spring Cultivator
The 3ZT-11 double spring cultivator is mainly applicable to the intertillage, soil loosening, moisture conservation and weeding of field crops. The supporting soil loosening plow tip can be changed according to the needs of different customers to meet different farming needs.
The traction cultivator mainly work together with the four-wheel tractor. During the working process, the plow column is tensioned by the action of the spring, and the plow tip is used to maintain a relatively stable working state to loosen the soil. When encountering obstacles or hard objects, the plow column can rotate backward. After crossing the obstacles, the plow column quickly returns to its original position under the action of the spring and continues to work, It plays a role in protecting machinery and plow tip. At the same time, the intercropping spacing and the number of the spring cultivator of plows can be adjusted as needed.
Specifications:

Type	3ZT-9	3ZT-11
No.of tiller(pcs)	9	11
Overall width(mm)	2692	2705
Overall length(mm)	864	866
Overall height(mm)	1003	1012
Working width(mm)	2540	2640
Distance of tiller(mm)	254	254
Weight(kg)	240	260
Matched power(HP)	18-40	18-60

---
